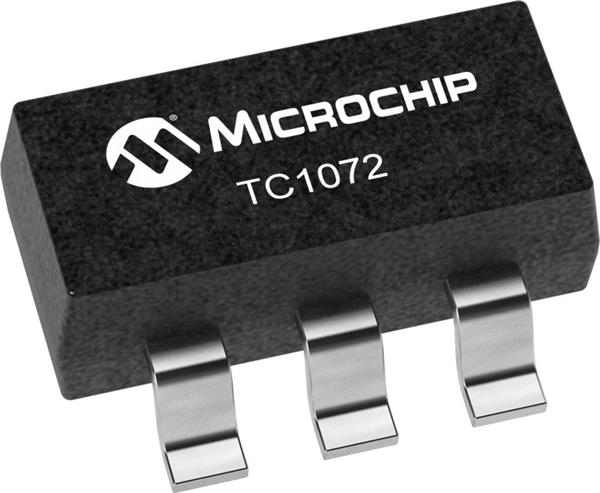

Microchip Technology TC1072-2.8VCH713 CMOS LDO's 50mA LDO with Shutdown & /Error out & V REF Bypass

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: 2.8 V

Dropout Voltage: 85 mV

Line Regulation: 0.05 %

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Input Voltage - Max: 6 V

Input Voltage - Min: 2.7 V

Dropout Voltage - Max: 120 mV

Operating Supply Current: 50 uA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 64 dB
