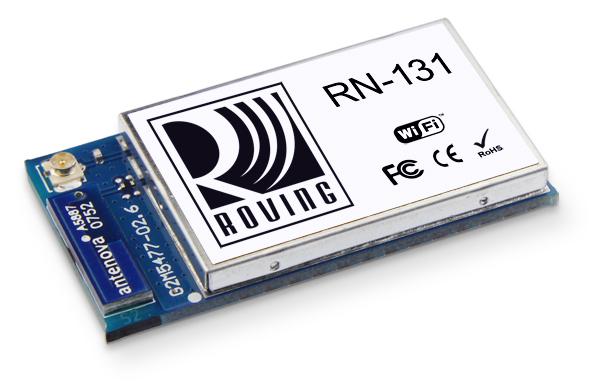

Microchip Technology RN131C/RM WiFi Modules WiFly GSX 802.11b/g Mod Commercial Temp

Security: WEP, WPA, WPA2

Data Rate: 11 Mb/s, 54 Mb/s

Frequency: 2.405 GHz to 2.48 GHz

Dimensions: 38 mm x 20 mm x 4 mm

Unit Weight: 6.600 g

Output Power: 18 dBm

Interface Type: GPIO, SDIO, SPI, UART

Protocol Supported: 802.11 b/g

Modulation Technique: DSSS, OFDM

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 3 V

Antenna Connector Type: Chip, U.FL

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 40 mA

Supply Current Transmitting: 210 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
