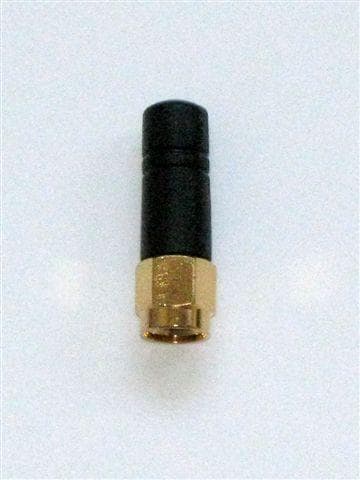

Microchip Technology RN-SMA-S Passive Antenna 2.4GHZ 1" Stubby Antenna

Gain: - 3.5 dBi

Style: Stubby

Length: 28.4 mm

Impedance: 50 Ohms

Technology: Monopole

Unit Weight: 3.600 g

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Moisture Sensitive: Yes

Protocol - Sub GHz: RFID, IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
