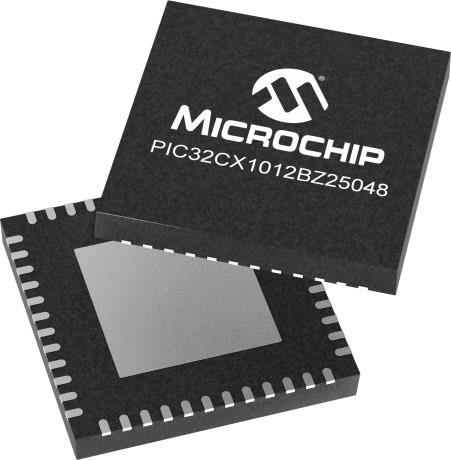

Microchip Technology PIC32CX1012BZ25048T-E/MYX BLE, LR-WPAN 64MHz CM4F Core w/ integrated BLE5 and 802.15.4, Extended operation temp, T&R

Core: ARM Cortex M4

Width: 7 mm

Height: 0.9 mm

Length: 7 mm

Technology: Si

Output Power: 12 dBm

Data RAM Size: 128 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C

Mounting Style: SMD/SMT

Number of I/Os: 29 I/O

Number of Timers: 4 x 16 bit

Maximum Data Rate: 3 Mbps

Operating Frequency: 2.4 GHz to 2.48 GHz

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.9 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 64 MHz

Supply Current Receiving: 40.6 mA

Operating Temperature Range: - 40 C to + 125 C

Supply Current Transmitting: 96.7 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
