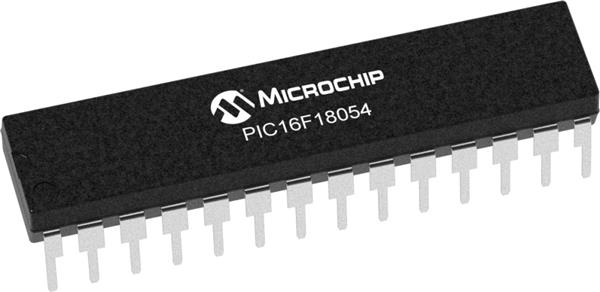

Microchip Technology PIC16F18054-I/SP MCUs 7KB Flash, 128EE, 512B RAM, 10b ADC, PWM, CCP, HLT, WDT, PPS, EUSART, SPI/I2C

Core: PIC16

Data RAM Size: 512 B

Data RAM Type: SRAM

Data ROM Type: EEPROM

ADC Resolution: 10 bit

DAC Resolution: 8 bit

Data Bus Width: 8 bit

Interface Type: I2C, SPI, UART

Mounting Style: Through Hole

Number of I/Os: 25 I/O

Watchdog Timers: Watchdog Timer

Program Memory Size: 7 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 24 Channel

Maximum Clock Frequency: 32 MHz

Number of Timers/Counters: 3 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
