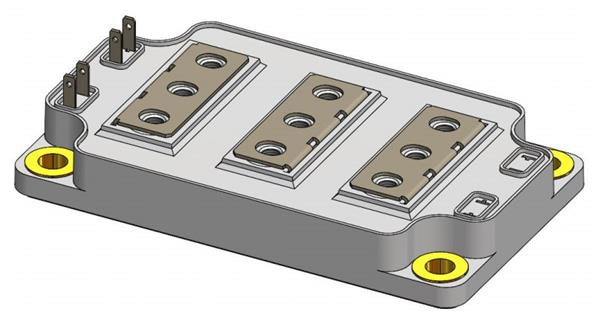

Microchip Technology MSCSM120HM083AG Full Bridge SiC Power Module PM-MOSFET-SIC-SP6C

Fall Time: 67 ns

Rise Time: 74 ns

Technology: SiC

Configuration: Full Bridge

Mounting Style: Screw Mount

Transistor Polarity: N-Channel

Pd - Power Dissipation: 1.042 kW

Vgs - Gate-Source Voltage: - 10 V, + 23 V

Typical Turn-On Delay Time: 66 ns

Typical Turn-Off Delay Time: 166 ns

Id - Continuous Drain Current: 251 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 10.4 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 1.8 V
