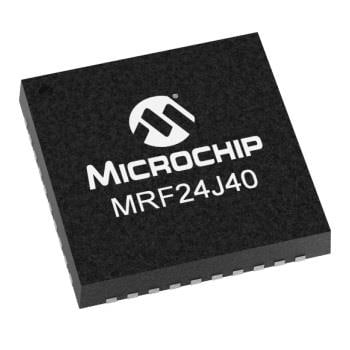

Microchip Technology MRF24J40MD-I/RM Zigbee Modules 2.4 GHz 802.15.4 RF Transceiver Mod

Range: 4000 ft

Data Rate: 250 kb/s

Frequency: 2.405 GHz to 2.48 GHz

Dimensions: 22.9 mm x 33 mm

Sensitivity: - 104 dBm

Unit Weight: 10 g

Output Power: 19 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 32 mA

Supply Current Transmitting: 140 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
