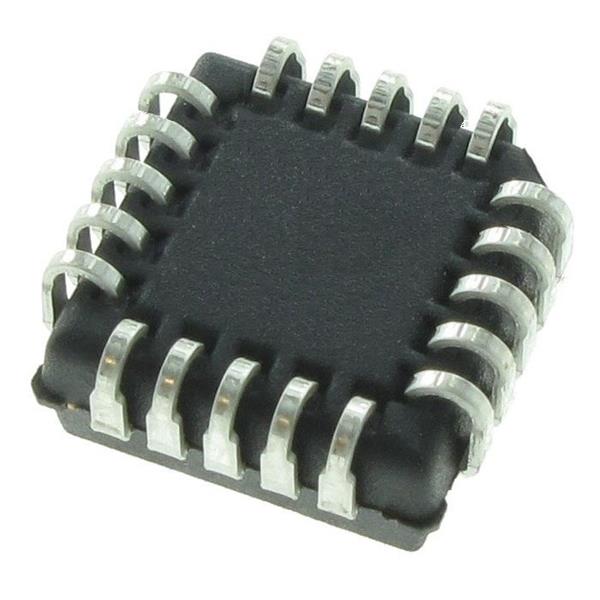

Microchip Technology MIC5842YV Latches 8-Bit Serial-in Latched Driver, Diodes

Polarity: Inverting

Logic Type: Serial Data Latch

Unit Weight: 722 mg

Logic Family: MIC58

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Circuits: 1 Circuit

Supply Current - Max: 16 mA

Supply Voltage - Max: 15 V

Supply Voltage - Min: 5 V

Number of Input Lines: 8 Line

Number of Output Lines: 8 Line

Low Level Output Current: 500 mA

Operating Supply Current: 16 mA

High Level Output Current: 500 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
