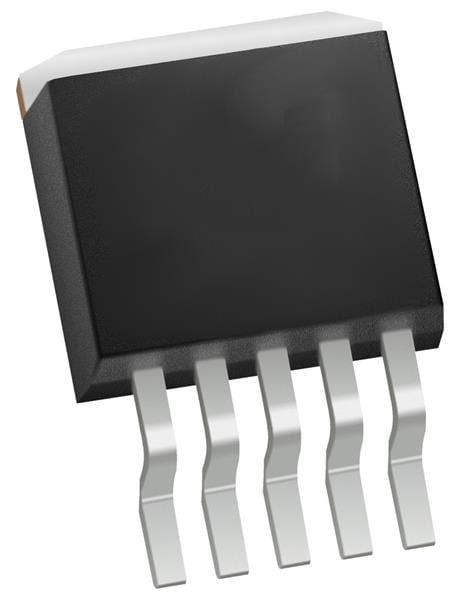

Microchip Technology MIC29302AWD-TR High Current LDO Regulator 3A Fast-Response LDO

Width: 6.2 mm

Height: 2.387 mm

Length: 6.604 mm

Polarity: Positive

Tolerance: 1 %

Output Type: Adjustable

Unit Weight: 330 mg

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 1.24 V to 15 V

Dropout Voltage: 450 mV

Line Regulation: 0.1 %

Load Regulation: 0.2 %

Number of Outputs: 1 Output

Reference Voltage: 1.267 V

Moisture Sensitive: Yes

Input Voltage - Max: 16 V

Input Voltage - Min: 3 V

Output Voltage Range: 1.24 V to 15 V

Dropout Voltage - Max: 800 mV

Ib - Input Bias Current: 40 nA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
