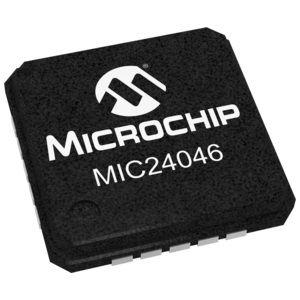

Microchip Technology MIC24046YFL-TR Pin-Programmable Step-Down Converter Step Down Converter Pin Programmable

Width: 3 mm

Height: 0.85 mm

Length: 3 mm

Shutdown: Shutdown

Topology: Buck

Unit Weight: 123 mg

Input Voltage: 4.5 V to 19 V

Mounting Style: SMD/SMT

Output Current: 5 A

Output Voltage: 700 mV to 3.3 V

Load Regulation: 0.25 %

Number of Outputs: 1 Output

Quiescent Current: 450 uA

Moisture Sensitive: Yes

Input Voltage - Max: 19 V

Input Voltage - Min: 4.5 V

Switching Frequency: 400 kHz

Supply Voltage - Min: 4.5 V

Operating Supply Current: 450 uA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
