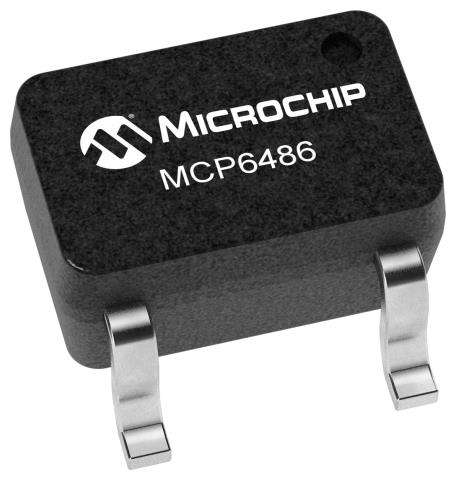

Microchip Technology MCP6486T-E/LT Operational Amplifiers Single, 10MHz Op Amp, E Temp

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Mounting Style: SMD/SMT

SR - Slew Rate: 20 V/us

THD plus Noise: 0.002 %

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Ib - Input Bias Current: 200 pA

Operating Supply Current: 720 uA

Vcm - Common Mode Voltage: 5.8 V

Ios - Input Offset Current: 1 pA

Output Current per Channel: 50 mA

Vos - Input Offset Voltage: 1.6 mV

GBP - Gain Bandwidth Product: 10 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.6 fA/sqrt Hz

en - Input Voltage Noise Density: 16 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 125 dB

PSRR - Power Supply Rejection Ratio: 100 dB
