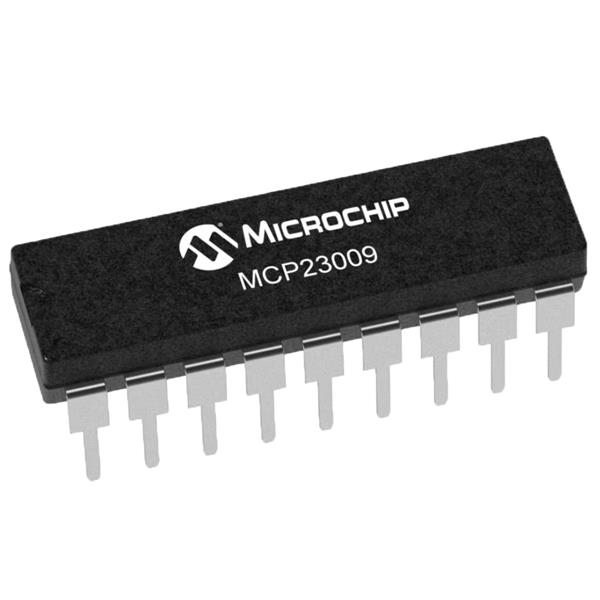

Microchip Technology MCP23009-E/P I/O Expander 8-bit I/O Expander I2C interface

Logic Type: I/O Expander

Unit Weight: 1.270 g

Logic Family: MCP23009

Input Voltage: 1.8 V to 5.5 V

ESD Protection: 4 kV

Interface Type: I2C, Serial

Mounting Style: Through Hole

Number of I/Os: 8 I/O

Output Current: 25 mA

Output Voltage: 1.8 V to 4.5 V

Interrupt Output: With Interrupt

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 700 mW

Propagation Delay Time: 50 ns

Maximum Clock Frequency: 3.4 MHz

Operating Supply Voltage: 1.8 V to 5.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
