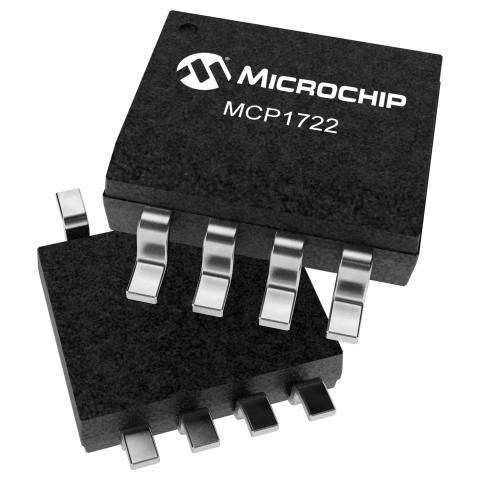

Microchip Technology MCP1722-3312H/S7X Low Dropout Voltage High Voltage Dual Output LDO 3.3Vout on LDO2 with 12Vout on LDO1 SOIC 8Ld with Extended Temperature Range

Polarity: Positive

Tolerance: 2 %

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 50 mA, 100 mA

Output Voltage: 3.3 V, 12 V

Line Regulation: 0.0002 %/V

Load Regulation: 0.01 %

Number of Outputs: 2 Output

Quiescent Current: 50 uA

Input Voltage - Max: 55 V

Input Voltage - Min: 4.5 V

Dropout Voltage - Max: 750 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: - 80 dB
