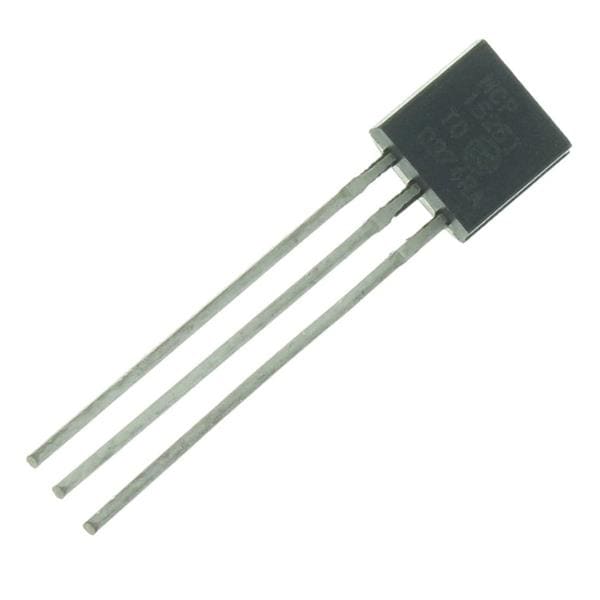

Microchip Technology MCP1525-I/TO Voltage References 2.5V

Width: 3.62 mm

Height: 4.62 mm

Length: 4.71 mm

Accuracy: 1.3 mV/mA

Topology: Series References

Unit Weight: 453.600 mg

Mounting Style: Through Hole

Output Voltage: 2.5 V

Reference Type: Series References

Initial Accuracy: 1 %

Moisture Sensitive: Yes

Shunt Current - Max: 8 mA

Description/Function: 2.5V and 4.096V Voltage References

Supply Current - Max: 100 uA

Temperature Coefficient: 50 PPM / C

Operating Supply Current: 20 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Series VREF - Input Voltage - Max: 5.5 V
