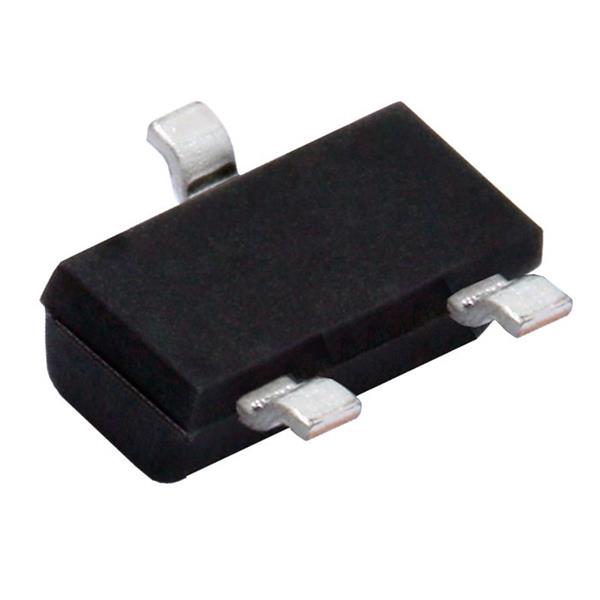

Microchip Technology MCP131T-475E/LB Voltage Supervisory Open Drain Low

Width: 1.35 mm

Height: 1 mm

Length: 2.25 mm (Max)

Unit Weight: 6.200 mg

Manual Reset: No Manual Reset

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 10 mA

Watchdog Timers: No Watchdog

Threshold Voltage: 4.63 V

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1 V

Overvoltage Threshold: 4.7 V

Undervoltage Threshold: 4.561 V

Operating Supply Current: 90 uA

Number of Inputs Monitored: 1 Input

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
