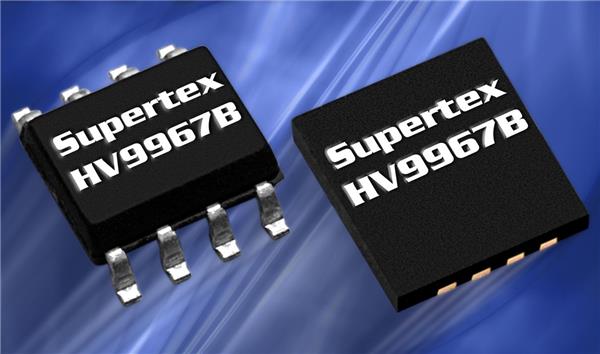

Microchip Technology HV9967BMG-G LED Lighting Drivers INTEGRATED LED DRV W/ AVG MODE CURRENT

Features: PWM Dimming, Short Circuit and Thermal Protection

Topology: Buck

Unit Weight: 140 mg

Input Voltage: 8 V to 60 V

Mounting Style: SMD/SMT

Output Current: 750 mA

Output Voltage: Adjustable

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 60 V

Input Voltage - Min: 8 V

Supply Current - Max: 1 mA

Pd - Power Dissipation: 350 mW

Low Level Output Current: 2 mA

High Level Output Current: 2 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
