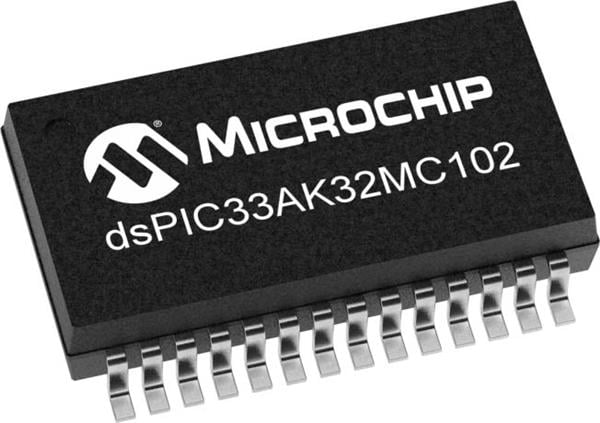

Microchip Technology dsPIC33AK32MC102T-E/SS Single-Core Digital Signal Controllers dsPIC33A, FPU, 200MHz, 32K Flash, 8K RAM, MC-PWM, 12-bit ADCs, Op Amps, Comp.

Core: dsPIC33AK

Data RAM Size: 8 kB

Data Bus Width: 16 bit

Interface Type: BISS, I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 38 I/O

Number of Cores: 1 Core

Watchdog Timers: Watchdog Timer, Windowed

Instruction Type: Fixed/Floating Point

Processor Series: DSC

Program Memory Size: 32 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Maximum Clock Frequency: 64 MHz

Operating Supply Voltage: 3 V to 3.6 V

Number of Timers/Counters: 6 Timer

L1 Cache Instruction Memory: 2 kB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
