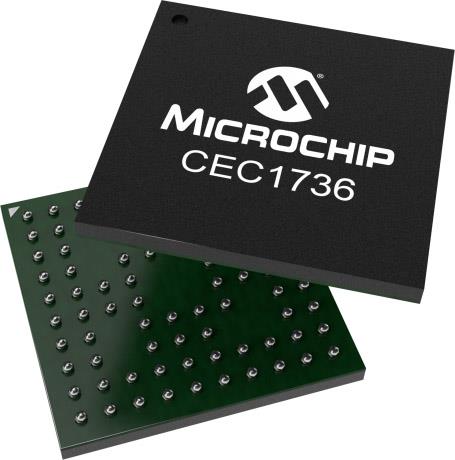

Microchip Technology CEC1736-S0-I/2HW ARM Microcontrollers - MCU 1-channel PFR with 2MB Flash and Tamper Countermeasures

Core: ARM Cortex M4F

Data RAM Size: 384 kB

Data RAM Type: SRAM

ADC Resolution: No ADC

Data Bus Width: 32 bit

Interface Type: GPIO, I2C, JTAG, SMBus, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 52 I/O

Watchdog Timers: Watchdog Timer

Program Memory Size: 2 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Maximum Clock Frequency: 96 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
