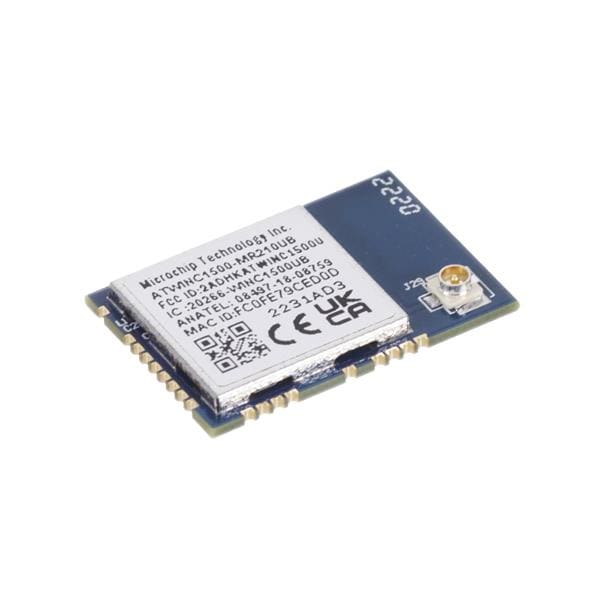

Microchip Technology ATWINC1500-MR210UB1976 WiFi Modules ATWINC1500 802.11 b/g/n Module, U.FL Ant., FW 19.7.6

Security: WEP, WPA, WPA2

Data Rate: 72.2 Mb/s

Frequency: 2.4 GHz

Dimensions: 21.7 mm x 14.7 mm x 2.1 mm

Output Power: 18.5 dBm

Interface Type: I2C, SPI, UART

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Modulation Technique: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Antenna Connector Type: u.FL

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 61 mA

Supply Current Transmitting: 265 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
