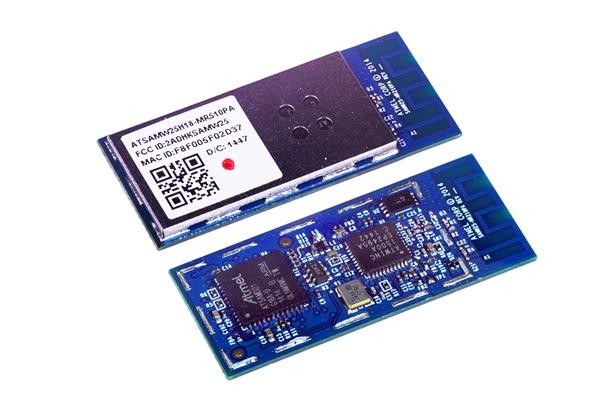

Microchip Technology ATSAMW25H18-MR210PB WiFi Modules Smart Connect ATWINC1500B-MU-T MOD

Security: SSL, TLS, WPA/WPA2

Data Rate: 72 Mb/s

Frequency: 2.4 GHz

Dimensions: 33.863 mm x 14.882 mm

Unit Weight: 8.250 g

Output Power: 17 dBm

Interface Type: Serial

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Antenna Connector Type: PCB

Operating Supply Voltage: 2.7 V to 3.6 V

Supply Current Receiving: 70 mA

Supply Current Transmitting: 172 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
