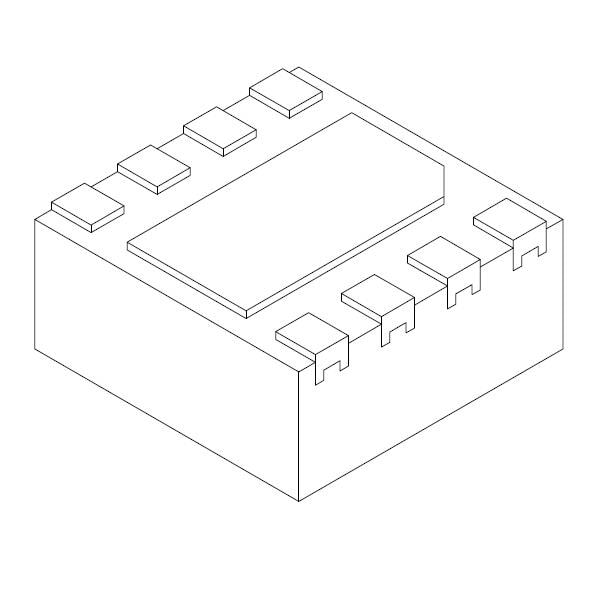

Microchip Technology ATA6563-GBQW1 High Speed CAN Transceiver CAN TRX with VIO PIN (DFN8)

Duplex: Half

Data Rate: 5 Mb/s

Unit Weight: 1 g

Qualification: AEC-Q100

ESD Protection: 8 kV

Interface Type: CAN

Mounting Style: SMD/SMT

Development Kit: ATA6563-EK

Number of Drivers: 1 Driver

Protocol Supported: CAN

Number of Receivers: 1 Receiver

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Propagation Delay Time: 300 ns

Operating Supply Current: 50 mA

Operating Supply Voltage: 4.5 V to 5.5 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
