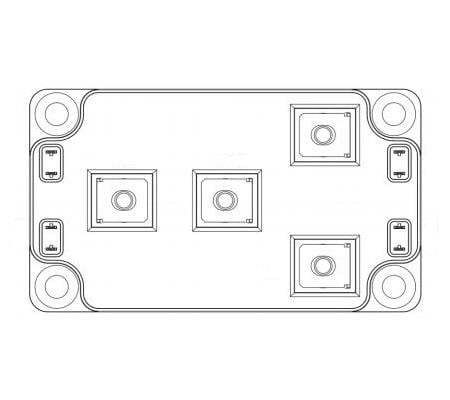

Microchip Technology APTM20AM04FG Phase Leg PM-MOSFET-FREDFET-7-SP6C

Width: 62 mm

Height: 21.9 mm

Length: 108 mm

Fall Time: 116 ns

Rise Time: 64 ns

Technology: Si

Unit Weight: 110 g

Configuration: Single

Mounting Style: Screw Mount

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 1.25 kW

Vgs - Gate-Source Voltage: - 30 V, + 30 V

Typical Turn-On Delay Time: 32 ns

Typical Turn-Off Delay Time: 88 ns

Id - Continuous Drain Current: 372 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 4 mOhms

Vds - Drain-Source Breakdown Voltage: 200 V

Vgs th - Gate-Source Threshold Voltage: 3 V
