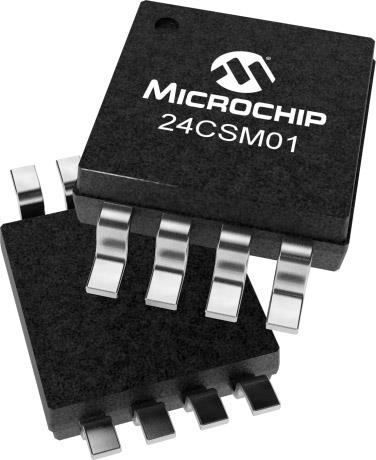

Microchip Technology 24CSM01T-I/MS EEPROM 1Mbit 3.4MHz I2C SERIAL , I-Temp, ECC, MSOP

Access Time: 400 ns

Memory Size: 1 Mbit

Organization: 128 k x 8

Data Retention: 200 Year

Interface Type: I2C

Mounting Style: SMD/SMT

Supply Current - Max: 3 mA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Maximum Clock Frequency: 1 MHz

Operating Supply Current: 1 mA, 3 mA

Operating Supply Voltage: 1.7 V to 5.5 V

Active Read Current - Max: 1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
