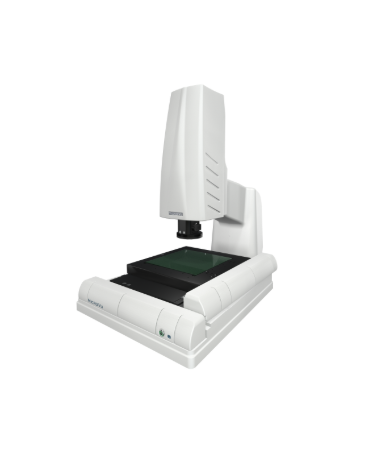

Micro.Vu Vertex 341UC Automated Precision Measurement Systems (250 mm/s, 100mm/s)

Measurement Volume [mm]: 315 x 315 x 160

Stage Capacity [kg]: 20

Exterior Dimensions [mm]: 900 x 1410 x 1065

Machine Weight [kg]: 150

XY Max Speed [mm/s]: 250

Z Max Speed [mm/s]: 100

Linear Resolution [µm] 0.1

Electrical

Input Voltage [VAC]: 100-240

Power Consumption (Max) [W]: 120

Power Consumption (Idle) [W]: 45

Power Consumption (Sleep) [W]: 35

Environmental

Operating Temperature [°C]: 18 - 27; <1 change per hour, <2 change per day

Storage Temperature [°C]: 0 - 50

Relative Humidity: 30% - 80% (Non-Condensing)

Sound Level [dB(A)]: < 70

Max Altitude [m]: 4000

MACHINE STANDARD FEATURES

(315 mm) X axis travel

(315 mm) Y axis travel

(160 mm) Z axis travel

Linear Accuracy Overall Uxy=2.5+L/180

(10 kg) table weight capacity

Field of view measurement

Color video system

3 axis servo motor system

Joystick for X, Y, and Z movement control

Profile Lighting

MACHINE STANDARD ACCESSORIES

InSpec Classic software for Windows in Windows 11

0.1µm Resolution Encoder Glass scale X, Y, & Z Axis

12x Programmable zoom lens with coaxial lighting with 3:1 Digital Zoom

Macro White LED Surface Ring Light for LWD (1X)

Steel Cabinet for Vertex 341

Device not included

Computer System c/w LCD Monitor

Computer Table

UPS
