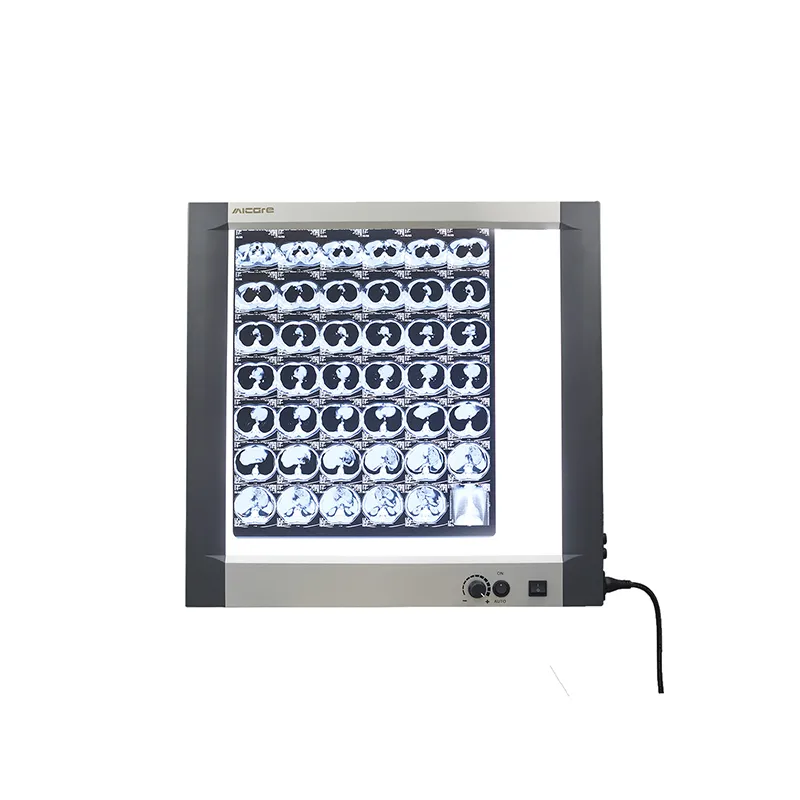

Micare MG-01X Medical film viewer (30W)

Screen SIZE L*H (mm): 370*440

Outer SIZE L*H*W (mm): 487*545*24

Max. Power (W): 30W

LED Specification: CCT >10,000K; Lifespan >100,000 h

View Panel Luminance: PWM Dimming System, can be modulated range from 1% to 100% continuously, Luminance:250-6500cd/ m2

Optical Scattering Coefficient: >0.7

Even Illuminating Coefficient Uniformity: >0.9

Continuously Working: >24h

Viewer is Lit within 10s, Stability of Luminance: <15 Minutes

Noise: <40dB

After 1 Hour Working, Surface Temperature: <60°C

Frequency of Regulator: DC12*(1±5%)V， 30kHz-100 kHz

Adopted with the newest real color TFT LCD background light thechnology and the advanced optics-trasfering design.

The color temperature is more than 8,600k,the frequency of light source is more than 50,000 times per second.This sereis X-Ray film viewer is mainly suitable to view all sizes of X-Ray film/CT film/DR film and other.

Imaging films in hospitals,clinics,colleges & insitutes.it is convenient to the professional for diagnosing,analysing the imaging & scholarly communications.
