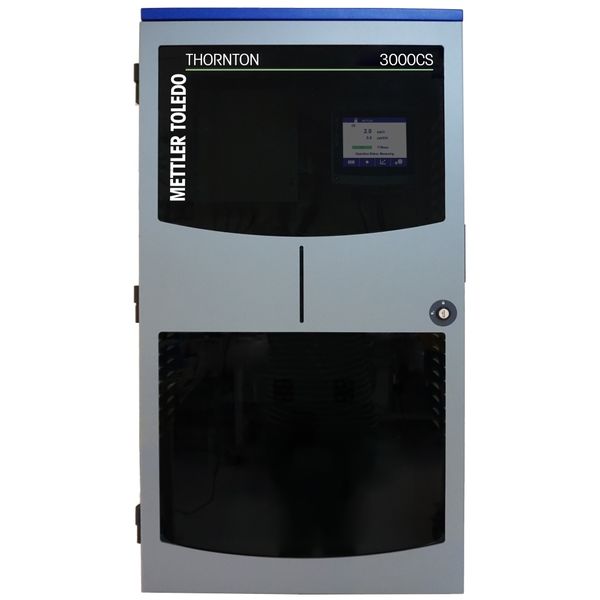

Mettler Toledo 58044001 Analyzer 3000CS

Weight: 44 kg (97 lbs)

Humidity: 10-70% non-condensing

Model Family: 3000CS

Power Supply: 100-240 VAC, 50-60 Hz, 100 W typical

Analog Output: 22mA alarm, 500 ohm max load, not for use with externally powered circuit

EnclosureType: Full

Relay Contacts: Mechanical rated at 250 VAC, 3 Amps (Relay 1 NC, Relay 2 to 4 NO), 4-SPDT Type Reed 250 VAC or DC, 0.5 Amps (Relay 5 to 8)

Sample Pressure: 0.3-7 bar (5-100 psig)

Sample Flow rate: 25-50 mL/min

Ratings/Approvals: CE / cULus

Built-in sequencer: No

Dimensions (HxWxD): 927x508x305 mm (36.5"x20.9"x12")

Operator Interface: Color touchscreen Simultaneous display of ion concentrations and analyzer status

Process Connection: Sample Inlet: 1/4" or 6 mm OD tube SS compressin fitting Drain Hose: 19x25.4 mm (3/4 x 1") 2 m (6 ft) length included

Sample Temperature: 10-45°C (50-113°F)

Analog Output Scaling: Linear, bi-linear, logarithmic (1,2,3,4 decades), auto ranging

Measurement Parameter: Chloride and sulfate

Analog Output Accuracy: ±0.05 mA

Measurement Cycle Time: 45 min typical, programmable between 15 minutes and 1 hour

Grab Sample Measurement: Included 100 mL capacity

Sulfate Measurement Range: 0-300 ppb

Chloride Measurement Range: 0-300 ppb

Sulfate Limit of Detection: 1 ppb

Chloride Limit of Detection: 0.5 ppb

Sulfate Measurement Accuracy: ±10% of reading or ±1 ppb whichever is greater

Ambient Operating Temperature: 10-35°C (50-95°F)

Chloride Measurement Accuracy: ±5% of reading or ± 0.5 ppb whichever is greater
