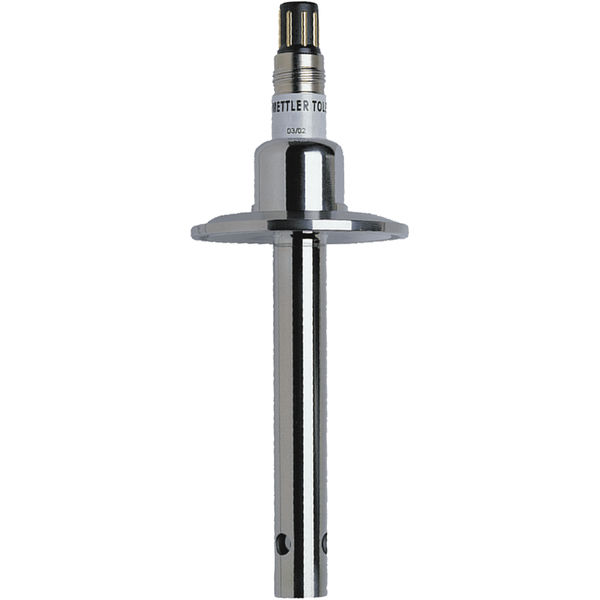

Mettler Toledo 52002000 Cond Sensor InPro7002/2 TC-VP

Model Family: 2-electrode sensor

Sterilizable: Yes

Cell Constant: 0.1 cm-1

O-Ring Material: PEEK (FDA)

Sensor Material: 316L SS

Cable Connection: Vario Pin (IP 68)

Measurement Range: 0.02-2000 µS/cm

Electrode Material: SS 316L

Process Connection: 2 inch TC

Temperature Sensor: PT 1000

Measurement Technology: Conductive

Cell Constant (nominal): 0.1 cm–1

Cell Constant (accuracy): ± 1.0 %

Hazardous Area Approvals: Yes

Primary Media/Application: Other Water Processes Pharmaceutical Waters Pharmaceutical/Life Science Production

Measured Pressure Resistance: 0 bar – 17 bar

Operating Temperature (Celsius): -10...120 °C

Operating Temperature (Fahrenheit): 14...248 °F

Hygienic/Biocompatibility Approvals: Yes

Mechanical Pressure Resistance (Bar): 17 bar (25°C), 7 bar (95°C)

Mechanical Pressure Resistance (PSI): 250 psi (77 °F), 100 psi (203 °F)

Surface Roughness of Wetted Metal Parts: Electropolished N4 (Ra < 0.2 μm) (Ra < 8 μin)
