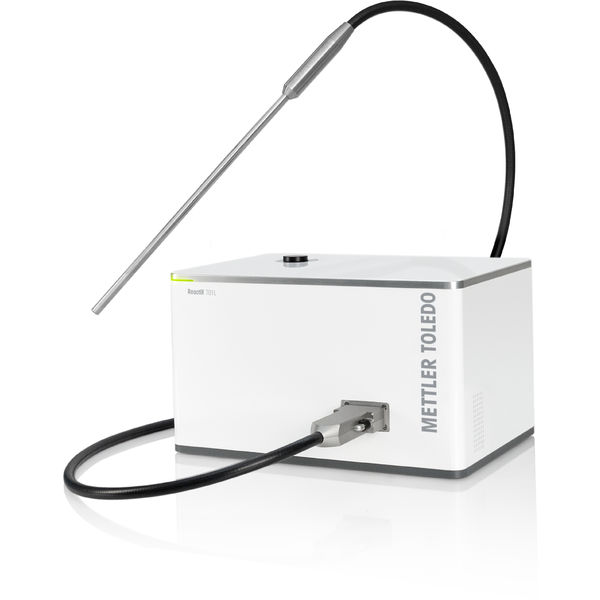

Mettler Toledo 30456496 System ReactIR 701L, LN2

Weight: 17.2 lb (7.8 kg)

Detector: LN2 MCT

Software: iC IR

For Use In: Laboratory

Resolution: 4 cm -1 maximum

Communication: USB

Probe pH Range: 1 – 14 (Diamond) 1 – 9 (Silicon)

Wetted Materials: Alloy C-22 Diamond or Silicon Gold or PTFE

Purge Requirement: No

Dimensions (HxWxD): 7.8 in x 13.5 in x 9 in (199 mm x 342 mm x 228 mm)

Probe Optical Window: 2500 – 650 cm-1 maximum (Fiber Probe)

Safety Certification: CE: EN/IEC 61010-1:2012, IEC 61326 NRTL/C: UL 61010-1, CSA 22.2 No. 61010-1, EN 61326

Probe Pressure (Maximum): 206bar (Sentinel) 69bar (6.3 & 9.5mm Fiber Probe)

Optical Range (Base Unit): 4000 – 650 cm-1

Laser Safety Certification: IEC 60825 (CE), 21 CFR 1040 (US)

Probe Temperature (Maximum): 180°C (Fiber Probe) 300°C (Sentinel)
