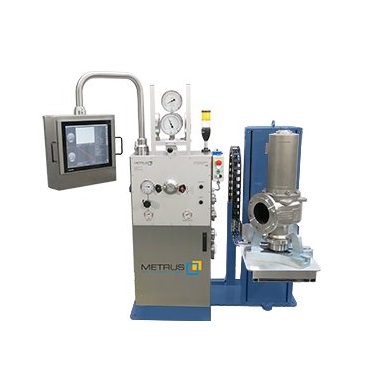

METRUS SV 36/150 Lift Test Bench For Safety Valves (36 tons, 15~400mm)

Clamping range: DN15-DN400 ½'' - 6'', test pressure range: 115~300bar

Clamping force: 36 tons

Way of clamping: Quick clamping system with proportional clamping force compensation

Interlock system when valve is under pressure

Test fl uid: Gas/air (external supply)

Pressure piping: PN 600 bar stainless steel

Stainless steel control panel

Bubble counter + rubber plugs up to DN100

Gauge quick connection for tool free change of gauges (2x)

METRUS Precision valves

Electric height adjustment of clamping table from 0 - 1000mm

Clamping with 3 of 2 clamping claws

Options

Gauge turret for 4 + 1 gauges

METRUS CRS - computer registration system

Backpressure test

Laser Bubble Counter

Other options on request
