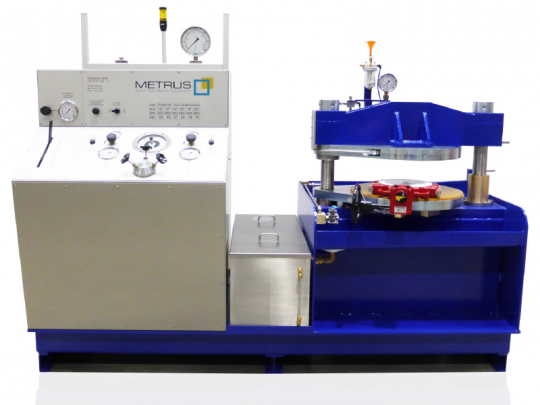

METRUS BV 36/500 Test Bench for Butterfly Valves (36 tons, 500mm)

Clamping unit for butterfly valves up to DN 500/20”

Hydraulic clamping force up to 36 tons

Safety interlock system while valve is under pressure

Max. test pressure at DN 500/20” up to 15 bar

High pressure water test up to 60 bar from bottom side

Low pressure air test up to 6 bar from bottom side

METRUS Precision valves

Anodized, chemical resistant front panel

Stainless steel control cabinet

Closed water cycle

Piping and fittings in stainless steel

Visual seat leakage contol from the top

Options:

External testing adapter - for testing valves bigger than DN 500/20’’ beside the calmping unit

Gauge turret for 4 + 1 gauges

Safety pressure limitation system

CRS - Computer-Registration-System with swivel mounted panel PC
