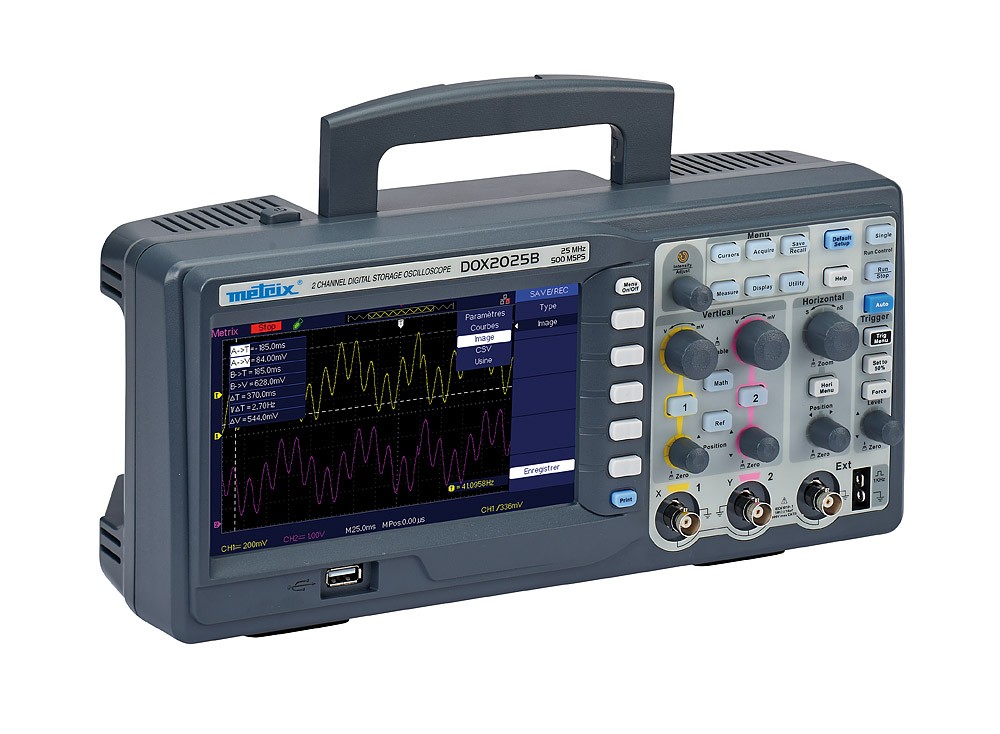

METRIX DOX2025B Digital oscilloscope (25 MHz, 2CH, 500 MSP/s)

7-inch WGA colour display, resolution 800 X 480

Fullmenus in 5 languages + on-screen contextual help in French/English

2-channelmeasurement capture + Ext Trig andcomplex triggers

Vertical resolution: 8 bits

32 automatic measurements

Cursors : Manual, tracking and automatic modes

USB host and device communication

IEC 61010-1 / 300 V CAT II

2 x25 MHz channels – Sweep speed from 25 ns/div. to 50 s/div.

Sampling rate: one-shot= 250 MS/s (2 channels), 500 MS/s (one channel) / Repetitive = 10 GS/s

Max. memory depth: 32 kpoints + USB Key

Accessories included

User guide on CD ROM

EasyScopeX PC software

Getting started guide

Safety data sheet

Power cord

USB A/B cable and ETHERNET

2 probes
