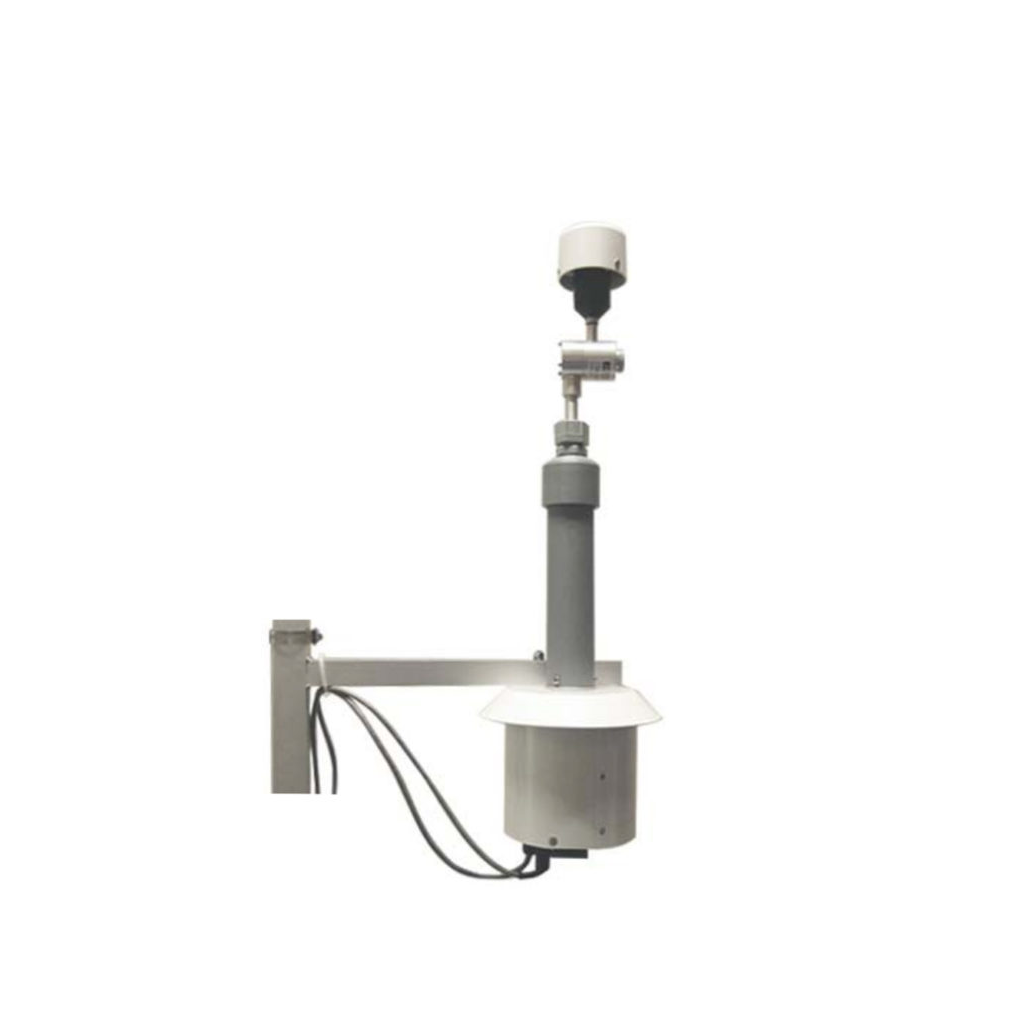

METONE NPM 3 Neighborhood Particulate Monitor (0~100mg/m3; 0.001 mg/m3)

Measurement Range: 0~100mg/m3 (0~100,000µg/m3)

Measurement Sensitivity: 0.001 mg/m3

Nephelometer Accuracy: ± 5% traceable standard with 0.6µm PSL

Particle Size Sensitivity: 0.1~100 microns. Optimal sensitivity 0.5~10 micron particles

Long Term Stability: 5% with clean optics

Laser Type: Diode Laser: 5 mW, 670 nm. Visible red.

Flow Rate: 2 liters/minute

Pump Type: Brushless Diaphragm

Input Power: Input: 11 – 40 VDC @ 1.5 A maximum

Power Consumption: 350 mA (no heater) 1.1 A (with heater) at 15 VDC

Operation Range: 0~50°C

Storage Range: -30~50°C (-22~122°F)

Humidity Range: 0~90%RH, non-condensing

Humidity Control: Automatic 12-Watt inlet heater module controlled to sample RH, with set point

Factory Service Interval: 24 Months typical, under continuous use in normal ambient air

Weight: 2.7kg (6lbs.)

Dimensions (HxWxD): 54.6x38.1x17.8cm (21.5”x15”x7”)

Mounting Options: Pole mount bracket standard; Optional mounting tripod

Accessories:

• Serial & Power Cable NPM 2 to Logger (P/N 82905)

• Serial & Power Cable NPM 2 to CCS Modem 2 (P/N 82906)

• Weather Proof Power Supply (P/N 9438-4)

• 0.2 micron Purge Filter (PN 580302)

• 5.0 micron Pump Protection Filter (PN 580345)

• Sharp Cut PM2.5 (P/N SCC 112)

• Sharp Cut PM10 (P/N SCC 110)

• Tripod (P/N 905)
