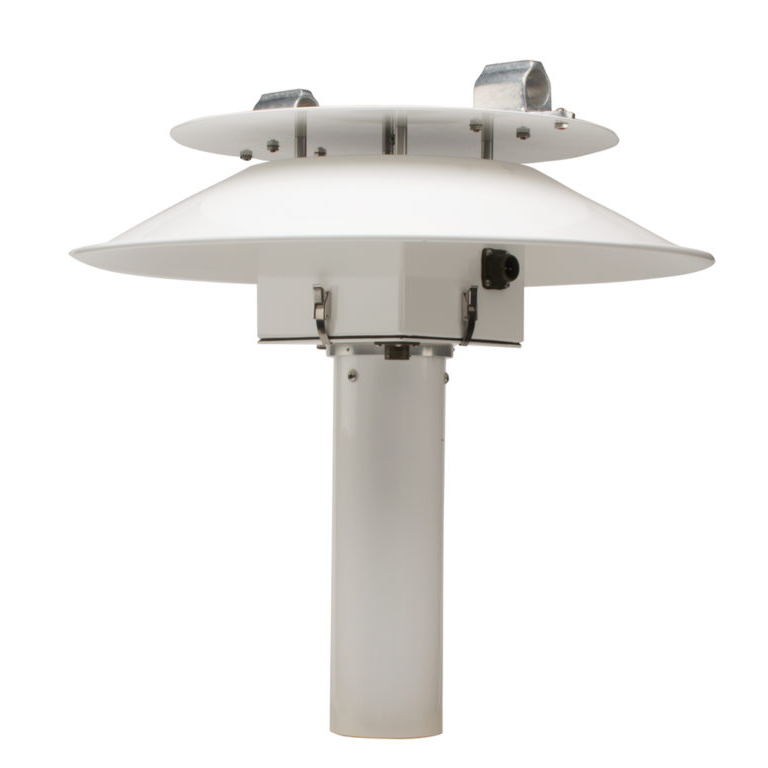

METONE 076B-1 Fan Aspirated Radiation Shield (115VAC; 20watts)

The 076B-1 Fan Aspirated Radiation Shield protects temperature and humidity sensors from direct and indirect radiant energy.

Operating Characteristics

Aspiration: Electric fan

Flow Rate:

• 1000ft/min scrubbing

• 500ft/min sample

Temperature Range:

• Standard: -50~85°C (-67~ 185°F)

• Optional: -50~100°C (-67~ 212°F)

Power Required: 115VAC; 20watts

Sensors

Maximum Number: Four

Models Numbers: 061/085/T-200A

Maximum Diameter: 0.75in (1.9cm)

Maximum Length: 10in (25cm)

Transducer Sensing Zone: 8in (20cm)

Physical Characteristics

Weight: 9.3lbs (4.2kg)

Dimensions (HxD): 20in(51cm)x20in (51cm)

Cable & Mounting

Signal: PN 2144 Cable Assembly; specify length in feet or meters

AC Power: PN 1954 Cable Assembly; specify length in feet or meters

DC Power: PN 2423 Cable Assembly; specify length in feet or meters

Mounting: Mounts to 3/4 in. IPS horizontal pipe
