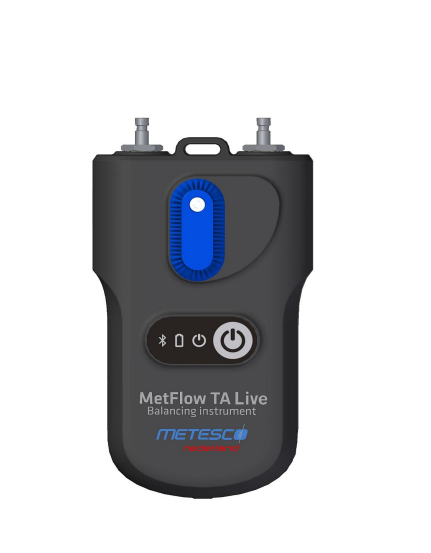

Metesco MetFlow TA Live Balancing Instrument

Nominal pressure range: 1,000 kPa or 2,000 kPa

Max. Overpressure: 120 % of nominal pressure

Linearity and hysteresis error: 0.50 % from nominal pressure range

Error for the pressure range 0 till 5 kPa after pressure zero setting:

± 50 Pa for nominal pressure range 1 MPa

± 100 Pa for nominal pressure range 2 MPa

Temperature error: 0.25 % from nominal pressure range

Medium temperature: -5 - 90 °C

Ambient temperature: -5 - 50°C

Storage temperature -5 - 50°C

Wireless data transfer: Bluetooth low energy 5.0

Power supply:

AAA Alkaline batteries or

NiMH rechargeable

batteries

Power Consumption: 25 mA

Operating time: 45 h Max.

Zeroing of the pressure measurement: Mechanical with hydraulic bypass

Water Resistance: IP65

Dimensions (l × w × d): 180 × 80 × 52

Weight: 420 g
