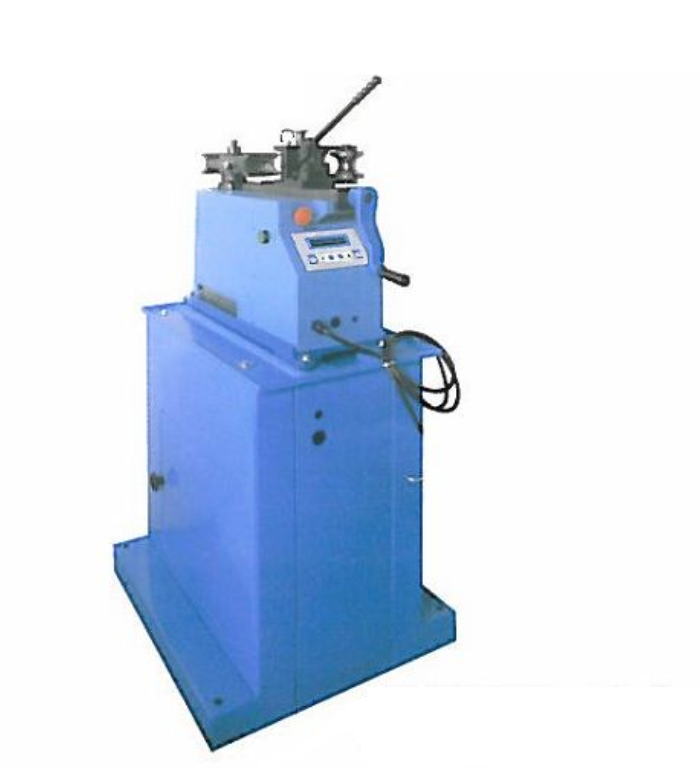

METALEX BM-42A Electric-Digital Pipe Bending Machine (3(4) x Ø)

Hard and soft copper pipes, annealed brass pipes(mm): Diameter ≤ 42; Thickness ≤ 1.5

Steel pipe for electricity plants(mm): Diameter ≤ 40; Thickness ≤ 1.5

Stainless steel AISI 304/316 pipes(mm): Diameter ≤ 30; Thickness ≤ 2

Hydraulic steel tubes ST, 35.4(mm):Diameter ≤ 42; Thickness ≤ 3

Furniture tubes(mm): Diameter ≤ 42; Thickness ≤ 2

FE boiler pipes(mm): Diameter ≤ 42; Thickness ≤ 3

Aluminum pipes(mm): Diameter ≤ 42; Thickness ≤ 3

Gas pipes UNI 5745(inch): Diameter ≤ 1 ¼”; Thickness: Standard

Double coated pipe(mm): Diameter ≤ 50; Thickness: Standard

Standard centreline bending radius(mm): 3 or 4 x Ø

Motor power(kw/v): 0.65 kw/220V (380V)

Dimensions (L x W x H)(mm): 600x180x450

Weight (nt) (kgs): 94
