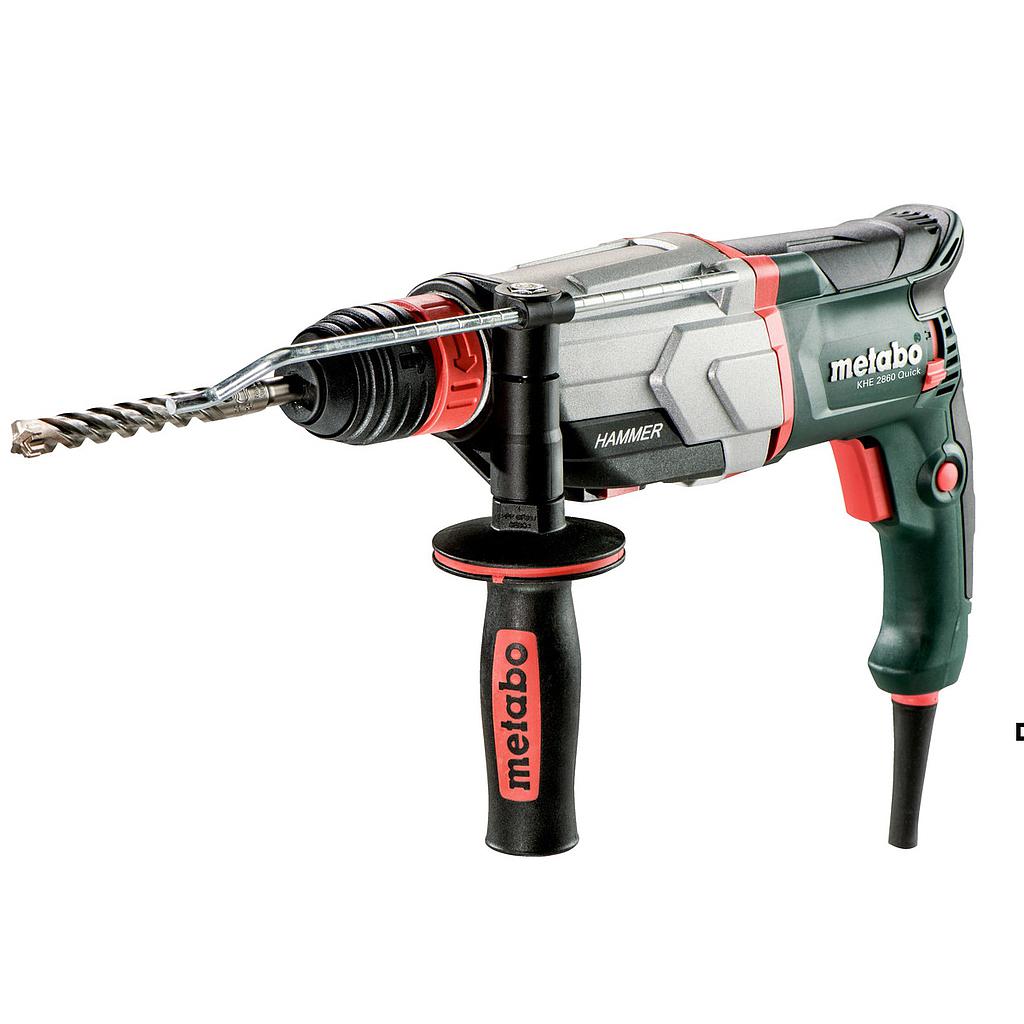

METABO KHE 2860 QUICK Combination hammer (0-1150 rpm)

Max. single blow energy (EPTA): 3.2 J

Maximum impact rate: 4400 bpm

Rated input power: 880 W

Ø Drill concrete with hammer drills: 28 mm / 1 3/32 "

Ø Drill masonry with core bits: 68 mm / 2 11/16 "

Ø Drill steel: 13 mm / 1/2 "

Ø Drill soft wood: 32 mm / 1 1/4 "

No-load speed: 0 - 1150 rpm

Revolutions at rated load: 870 rpm

Bit retainer: SDS-plus

Collar diameter: 50 mm / 1 31/32 "

Weight (without power cable): 3.1 kg / 6.9 lbs

Cable length: 4 m / 13 ft

Vibration

Hammer drilling concrete: 12.9 m/s²

Uncertainty of measurement K: 2.4 m/s²

Chiseling: 8.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 89 dB(A)

Sound power level (LwA): 99 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Hammer chuck for tools with SDS-plus shank end

Drilling depth guide

Plastic carry case

Rubber-coated side handle

Accessories

DRILLING/CHISELLING

SDS-plus drill/chisel bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills, Further accessories for rotary and chipping hammers

ACCESSORY SETS/SPECIALS

Bit sets, Drill bit sets, Chisel bit sets

SCREWDRIVING/FIXING

Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments

OTHER ACCESSORIES

Case systems, Occupational safety

Datasheet

Features

Combination hammer with 3 functions: hammer drilling, drilling and chiselling

Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal

Perfect ergonomics thanks to the centre of gravity being near the hand and optimised handle contour

Bottom switch protected against damage and dust

Vario (V)-Electronics for working at customised speeds to suit various application materials

Metabo Marathon-motor with dust protection for long service life

High performance hammer action, precisely mounted in a housing made of aluminium alloy: long-lasting and robust

Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly

Lockable switch for comfortable working in continuous operation

Cable-protecting ball joint for optimal freedom of motion when working
