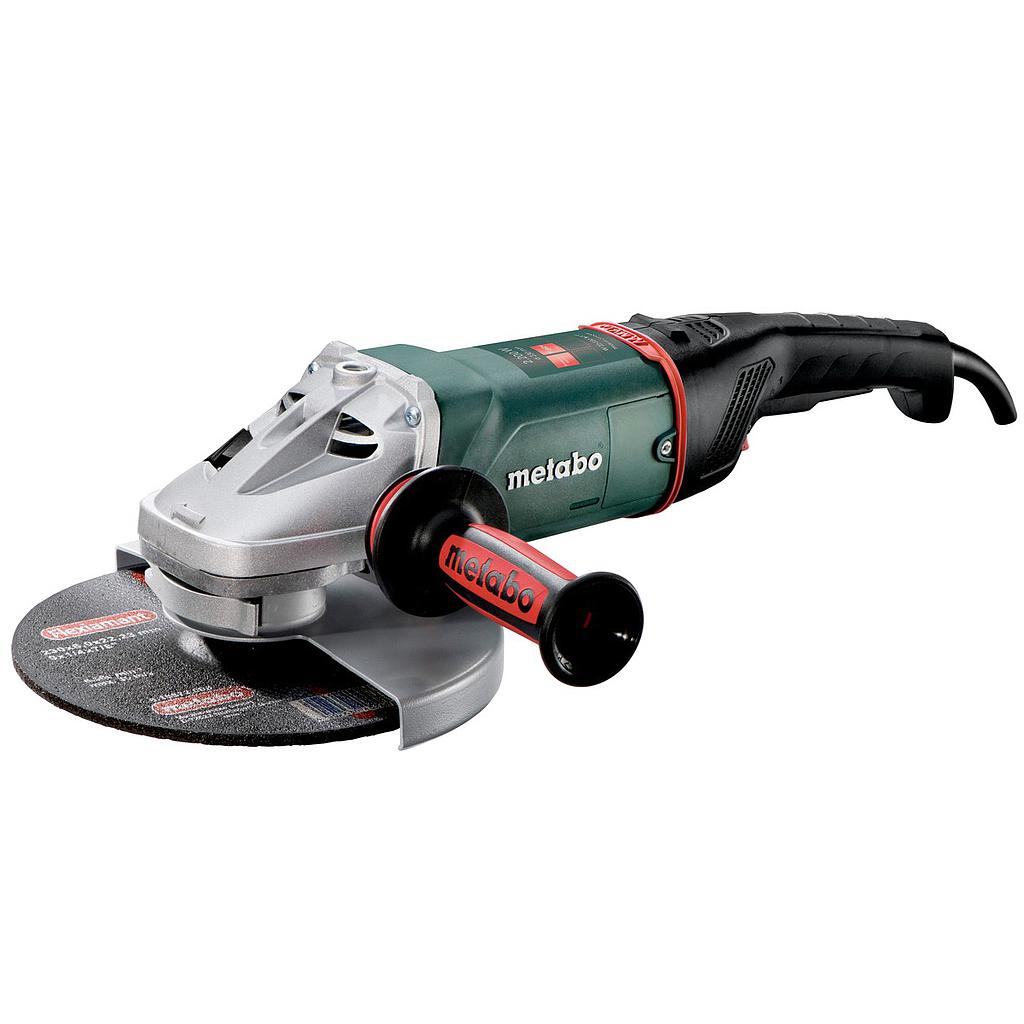

METABO W 22-230 MVT Angle grinder

Ø Grinding wheel: 230 mm / 9 "

Rated input power: 2200 W

Output power: 1500 W

No-load speed: 6600 rpm

Revolutions at rated load: 4600 rpm

Torque: 14 Nm / 124 in-lbs Nm

Spindle thread: M 14

Weight (without power cable): 5.8 kg / 12.8 lbs

Cable length: 4 m / 13 ft

Vibration

Surface grinding: 6.2 m/s²

Uncertainty of measurement K: 1.5 m/s²

Grinding with sandpaper: 2.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 94 dB(A)

Sound power level (LwA): 105 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Guard

Metabo VibraTech (MVT) side handle

Flat-pin spanners

Inner support flange

Nut with two holes

Accessories

CUTTING/GRINDING

Cutting discs, Grinding discs, Diamond cutting discs, Fibre sanding discs, Wire brushes, Cup wheels (ceramic), Accessories for flat-head angle grinders, Further accessories for angle grinders

ACCESSORY SETS/SPECIALS

Diamond cutting discs

OTHER ACCESSORIES

Case systems, Accessories for wall chasers, Occupational safety

Datasheet

Features

Metabo Marathon motor with patented dust protection for long service life

Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting

Tool-free adjustable guard; twist-proof

Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health

Metabo safety switch prevents unintentional start

Auto-stop carbon brushes to protect the motor
