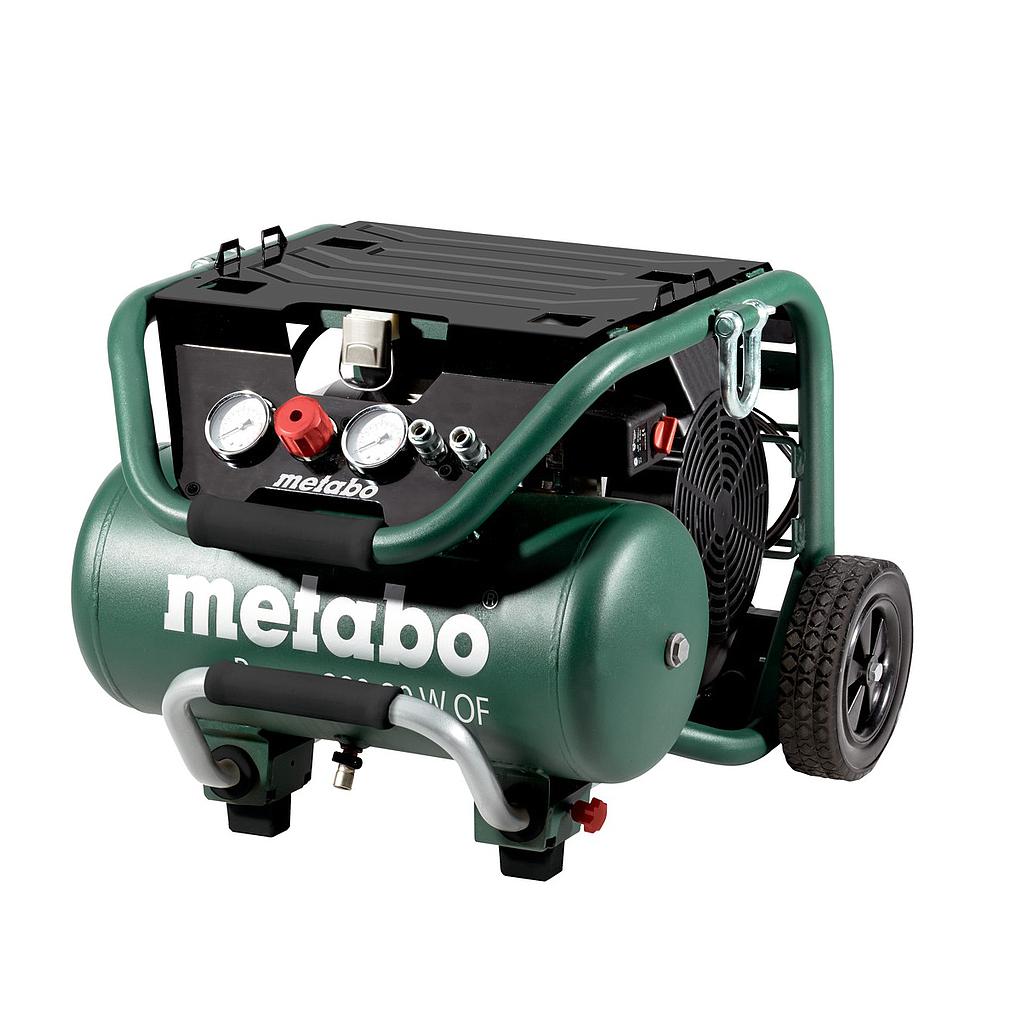

METABO POWER 400-20 W OF Power compressor (230 V / 50 Hz)

Suction rate: 330 l/min / 87 gal/h

Filling capacity: 200 l/min / 7.1 cfm

Effective delivery volume (at 80% max. pressure): 185 l/min / 6.5 cfm

Maximum pressure: 10 bar / 145 psi

Rated input power: 2.2 kW / 3 HP

Maximum speed: 1400 rpm

Tank capacity: 20 l / 5.3 gal

Sound pressure level (LpA): 78 dB(A)

Sound power level (LwA): 95 dB(A)

Dimensions: 580 x 600 x 500 mm / 1.9 x 2 x 1.7 ft

Weight: 47 kg / 103.6 lbs

Cable length: 4 m / 13 ft

Noise emission

Sound pressure level: 78 dB(A)

Sound power level (LwA): 95 dB(A)

Delivery

2 x Universal quick-action couplings

Accessories

OTHER ACCESSORIES

Case systems, Occupational safety

Datasheet

Features

Compact and mobile piston compressor for flexible use both indoors and on construction sites

Particularly low-level noise and vibrations

For single phase alternating current

Designed for continuous operation with S1 motor operating mode

Oil-free piston compressor: simple transportation and reduced service requirements

Operating pressure can be regulated according to application by means of a pressure reducer and manometer

Fittings and control elements protected in tubular frames and clearly visible

Rubberised, stable wheels and pull handle for mobile use

Cable winding mechanism

Convenient pressure switch for good cold starting, complete with relief valve

Overload protection: protects the motor from overheating

Rubberised feet for optimum stability

Attachment and transport option for Metaloc and other common storage case systems

Crane eyelet for safe and easy transport on the construction site
