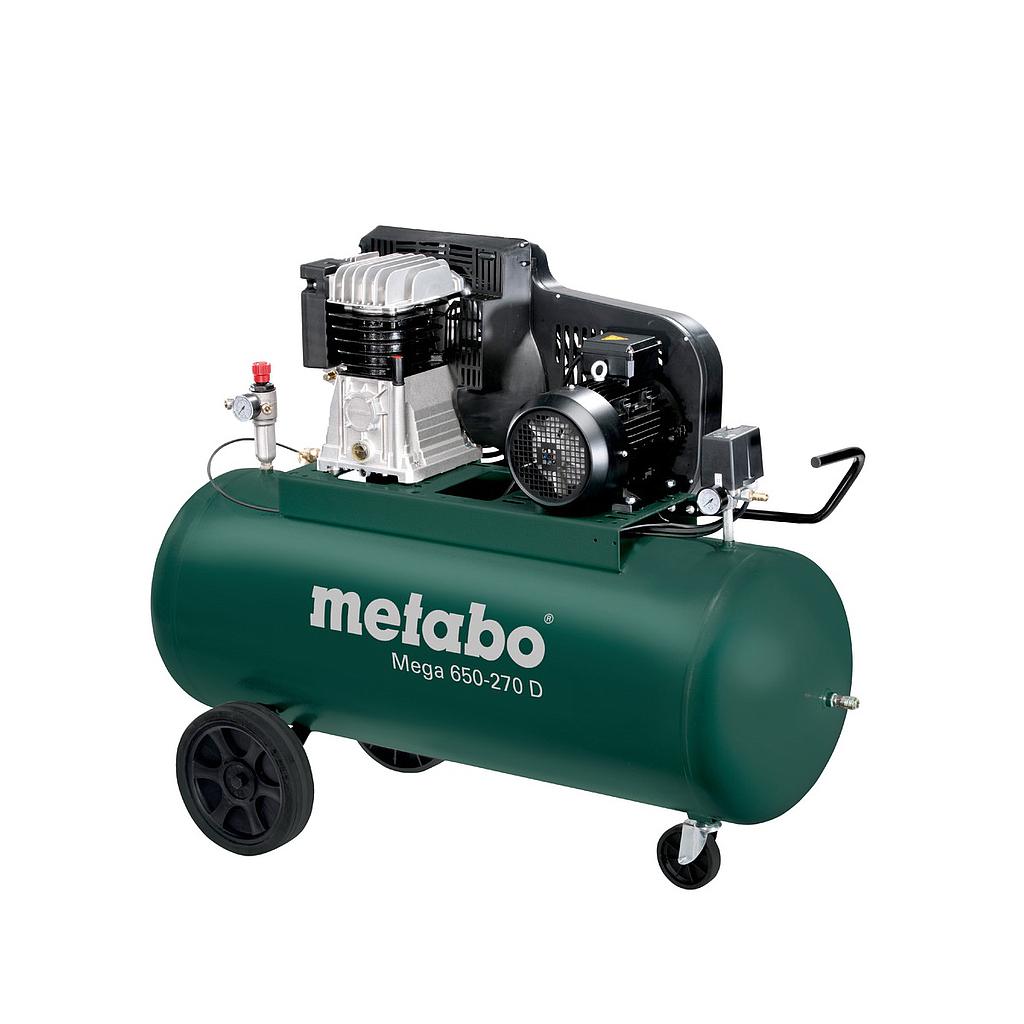

METABO MEGA 650-270 D Mega compressor (380-415 V / 50 Hz)

Suction rate: 650 l/min / 172 gal/h

Filling capacity: 520 l/min / 18.4 cfm

Effective delivery volume (at 80% max. pressure): 450 l/min / 15.9 cfm

Maximum pressure: 11 bar / 160 psi

Rated input power: 4 kW / 5.5 HP

Maximum speed: 1400 rpm

Tank capacity: 270 l / 71.3 gal

Sound pressure level (LpA): 88 dB(A)

Sound power level (LwA): 97 dB(A)

Dimensions: 1530 x 600 x 1160 mm / 5.1 x 2 x 3.8 ft

Weight: 170 kg / 375 lbs

Cable length: 1.5 m / 5 ft

Noise emission

Sound pressure level: 88 dB(A)

Sound power level (LwA): 97 dB(A)

Delivery

3 x Universal couplings

Accessories

COMPRESSED AIR

Accessories for compressors, Compressed air preparation, Accessories for compressed air tools

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

More powerful and robust V-belt compressor for demanding use

Belt drive for low speeds and a particularly quiet operation

Two-stage compression for particularly high performance and long service life

For three-phase current

Working pressure can be regulated according to application by means of a filter pressure reducer with manometer

Convenient pressure switch for good cold starting, complete with relief valve

Additional manometer for displaying the tank pressure

Overload protection: protects the motor from overheating

Oil-lubricated 2-cylinder piston compressors for high air supply volume

Re-cooler for less condensation water formation

Rubberised, stable wheels and pull handle for mobile use

10 year tank warranty against rust
