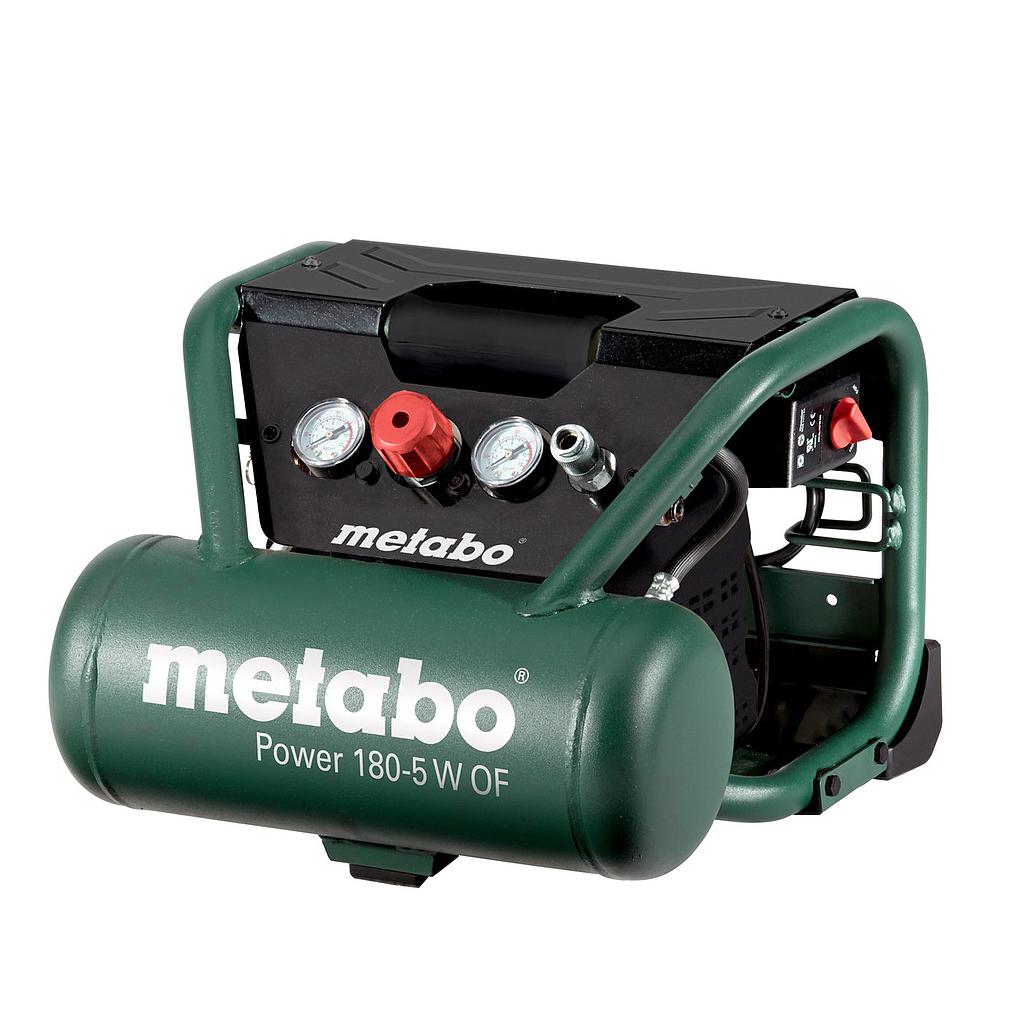

METABO POWER 180-5 W OF Power compressor (230 V / 50 Hz)

Suction rate: 160 l/min / 42 gal/h

Filling capacity: 90 l/min / 3.2 cfm

Effective delivery volume (at 80% max. pressure): 75 l/min / 2.6 cfm

Maximum pressure: 8 bar / 116 psi

Rated input power: 1.1 kW / 1.5 HP

Maximum speed: 2850 rpm

Tank capacity: 5 l / 1.3 gal

Sound pressure level (LpA): 82 dB(A)

Sound power level (LwA): 96 dB(A)

Dimensions: 370 x 395 x 286 mm / 1.3 x 1.3 x 1 ft

Weight: 16 kg / 35.3 lbs

Cable length: 2.4 m / 8 ft

Noise emission

Sound pressure level: 82 dB(A)

Sound power level (LwA): 96 dB(A)

Delivery

Universal quick-action coupling

Accessories

COMPRESSED AIR

Compressed air distribution

OTHER ACCESSORIES

Occupational safety, Accessories for water and pump technology

Datasheet

Features

Compact and mobile piston compressor for flexible use both indoors and on construction sites

Portable assembly compressor – ideal for tackers and nails as well as for splitting pipes

For single phase alternating current

Oil-free piston compressor: simple transportation and reduced service requirements

Instrument panel with easy to read manometer for tank- and working pressure

Operating pressure can be regulated according to application by means of a pressure reducer and manometer

Fittings and control elements protected in tubular frames and clearly visible

Cable winding mechanism

Convenient pressure switch for good cold starting, complete with relief valve

Overload protection: protects the motor from overheating

Rubberised feet for optimum stability
