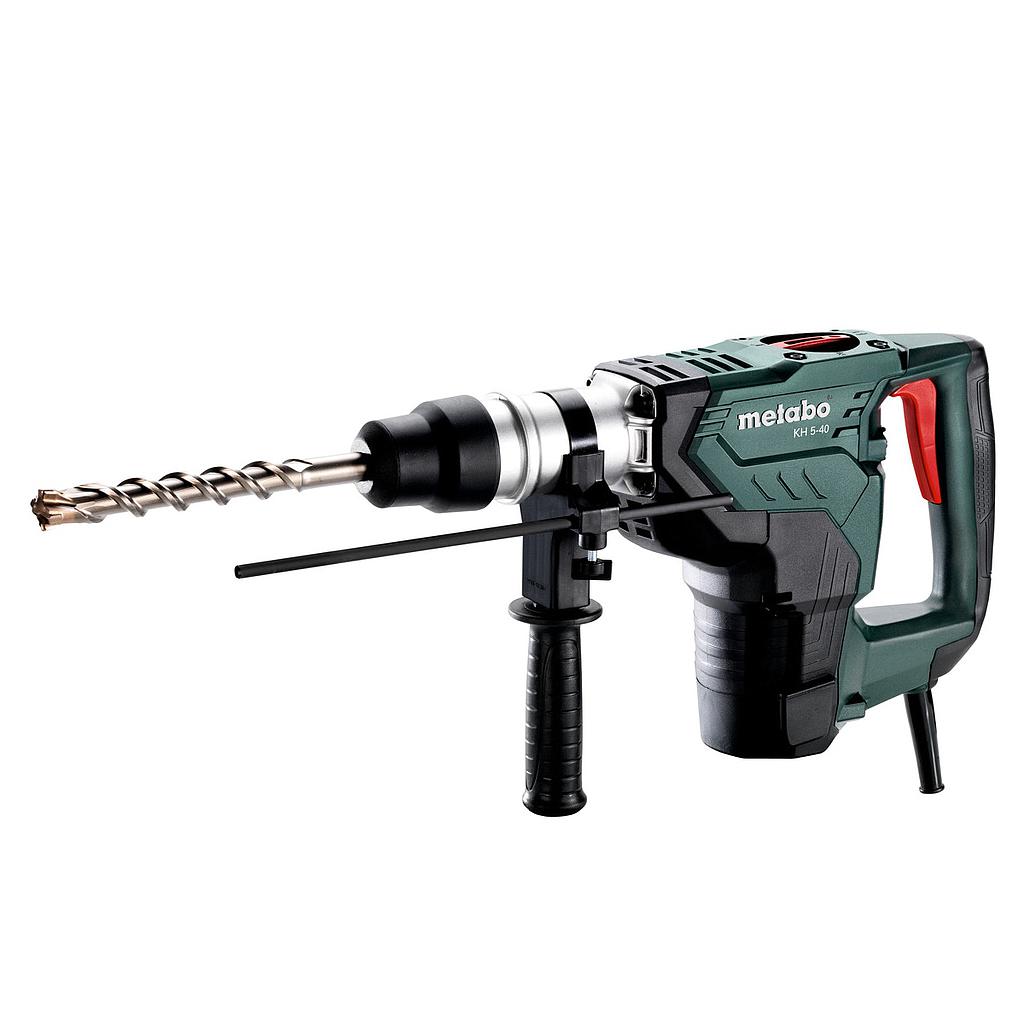

METABO KH 5-40 Combination hammer (620 rpm)

Max. single blow energy (EPTA): 7.1 J

Maximum impact rate: 2800 bpm

Rated input power: 1100 W

Drill-Ø concrete with hammer drills: 40 mm / 1 9/16 "

Drill-Ø masonry with core bits: 105 mm / 4 1/8 "

No-load speed: 620 rpm

Bit retainer: SDS-max

Collar diameter: 61 mm / 2.4 "

Weight (without power cable): 7.1 kg / 15.7 lbs

Cable length: 4 m / 13 ft

Vibration

Hammer drilling concrete: 16.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Chiseling: 13.3 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 95 dB(A)

Sound power level (LwA): 106 dB(A)

Uncertainty of measurement K3 dB(A)

Delivery

Rubber-coated side handle

Plastic carry case

Drilling depth guide

Lubricant for tool shank end

Accessories

DRILLING/CHISELLING

SDS-max drill/chisel bits, Drill bit assortments, Core bits, Router bits, Further accessories for rotary and chipping hammers

ACCESSORY SETS/SPECIALS

Chisel bit sets

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

Combination hammer with 2 functions: hammer drilling and chiselling

Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly

Robust die cast aluminium gear housing for optimum heat dissipation and long service life
