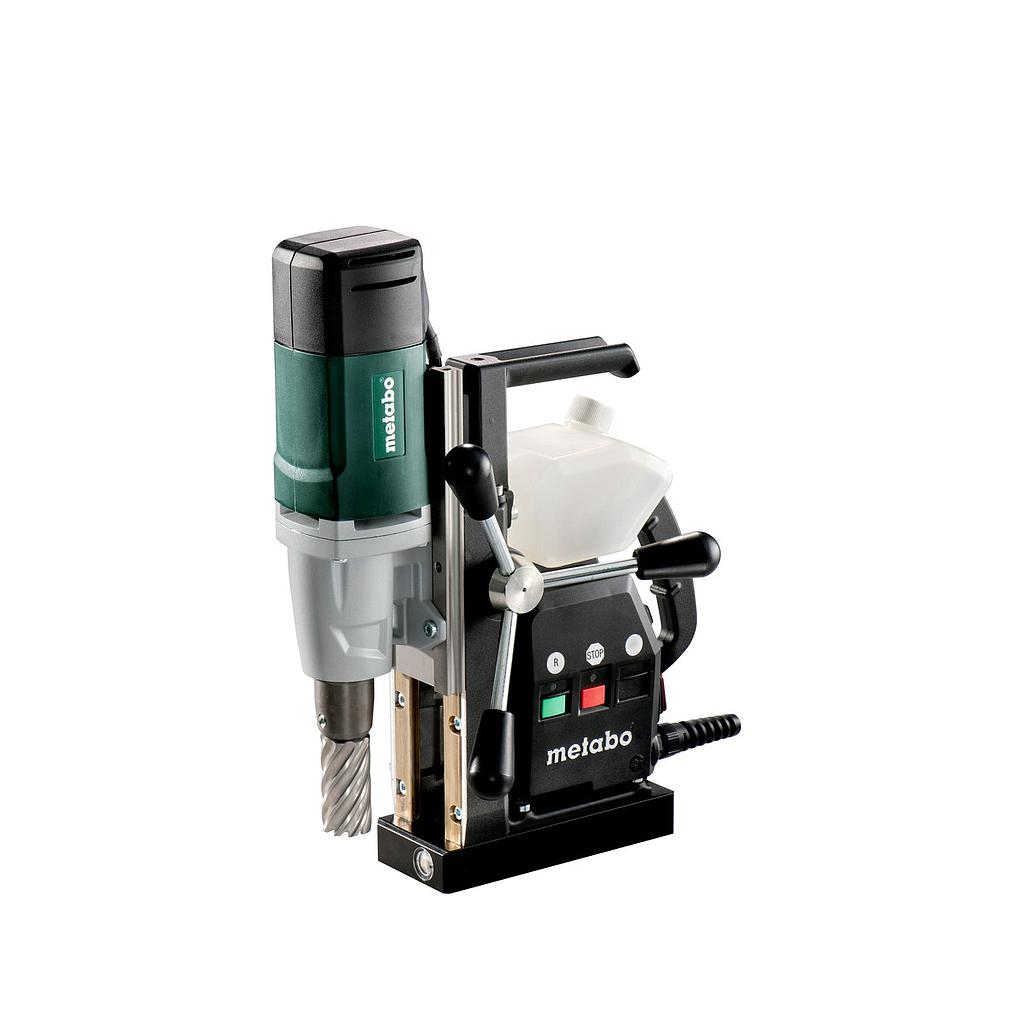

METABO MAG 32 Magnetic core drill (220-240 V / 50-60 Hz)

Rated input power: 1000 W

Output power: 520 W

Max. drill-Ø with core drill: 32 mm / 1 1/4 "

Max. drill-Ø with spiral drill: 13 mm / 1/2 "

Maximum drilling depth: 50 mm / 2 "

No-load speed: 700 rpm

Revolutions at rated load: 450 rpm

Bit retainer: Weldon shaft 19 mm (3/4")

Weight: 11.9 kg / 26.2 lbs

Cable length: 5 m / 16 ft

Torque: 50 Nm / 443 in-lbs

Max. depth of feed: 160 mm / 6 5/16 "

Max. magnetic holding force: 12250 N

Dimensions of the magnet base: 90 x 189 mm / 3 9/16 x 7 1/2 "

Height carriage lowest position: 343 mm / 13 1/2 "

Height carriage topmost position: 490 mm / 19 9/32 "

Vibration

Drilling in metal: 2.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 85 dB(A)

Sound power level (LwA): 98 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Ejector pin 75 mm

Swarf protection guard

Transport case

Safety strap

Hexagon socket wrench SW 4

Accessories

DRILLING/CHISELLING

Core drills, Further accessories for core drills

CHUCKS

Keyless chucks

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

Large stroke, therefore suitable for use of core drills, spiral drills and countersinks

Magnetic base with high holding power permits working on vertical surfaces and overhead

Robust Metabo marathon motor with internal wiring for long service life

Integrated coolant container for easy to dose internal cooling of the core drill

Bright LED light for easy alignment in poor light conditions

Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact

Protective circuit starts motor only if the magnet is activated

Restart protection: prevents unintentional start-up after power supply interruption

Lockable slide for comfortable tool change

Handle for easy carrying and lifting

Resistant mains cable (5 m) with rubber shroud
