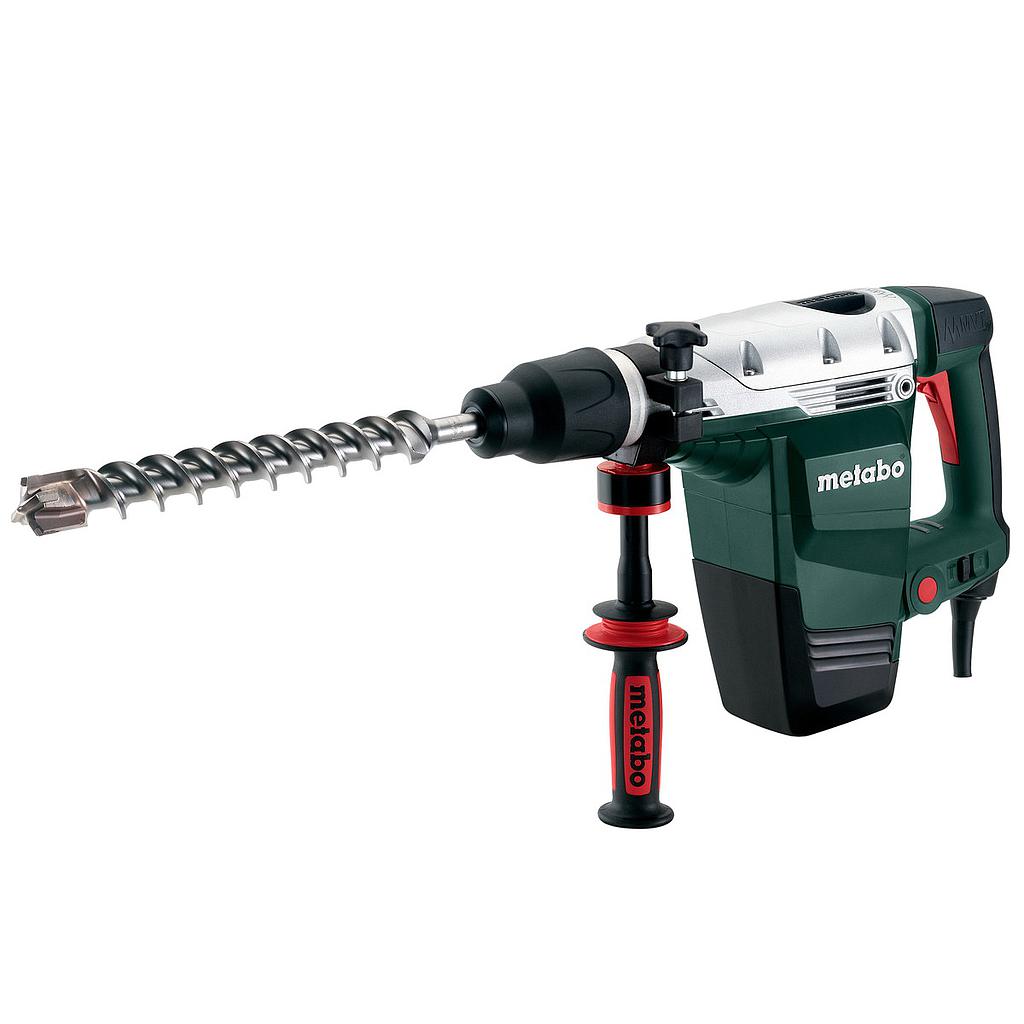

METABO KHE 76 Combination hammer (220-240 V/50-60 Hz)

Max. single blow energy (EPTA): 11.9 J

Maximum impact rate: 2735 bpm

Rated input power: 1500 W

Drill Ø concrete with hammer drills: 50 mm / 2 "

No-load speed: 0 - 300 rpm

Bit retainer: SDS-max

Collar diameter: 66 mm / 2 19/32 "

Weight (without power cable): 8.4 kg / 18.5 lbs

Cable length: 6 m / 20 ft

Vibration

Hammer drilling concrete: 9.7 m/s²

Uncertainty of measurement K: 1.5 m/s²

Chiseling: 9.7 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 96 dB(A)

Sound power level (LwA): 107 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Metabo VibraTech (MVT) side handle

Duster

Plastic carry case

Lubricant for tool shank end

Accessories

DRILLING/CHISELLING

SDS-max drill/chisel bits, Drill bit assortments, Core bits, Router bits, Further accessories for rotary and chipping hammers

ACCESSORY SETS/SPECIALS

Chisel bit sets

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

Combination hammer with 2 functions: hammer drilling and chiselling

Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

Optional 30% impact reduction setting for working with more pliant materials

Electronic soft start for precise spot-drilling

Optimum heat dissipation and low weight thanks to die cast magnesium gear housing

Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly

Service display, e.g. to indicate when the carbon brush needs to be replaced, and an LED indicating mains voltage

Lockable switch for comfortable working in continuous operation

Metabo VibraTech (MVT) side handle for vibration damping to protect the user's health
