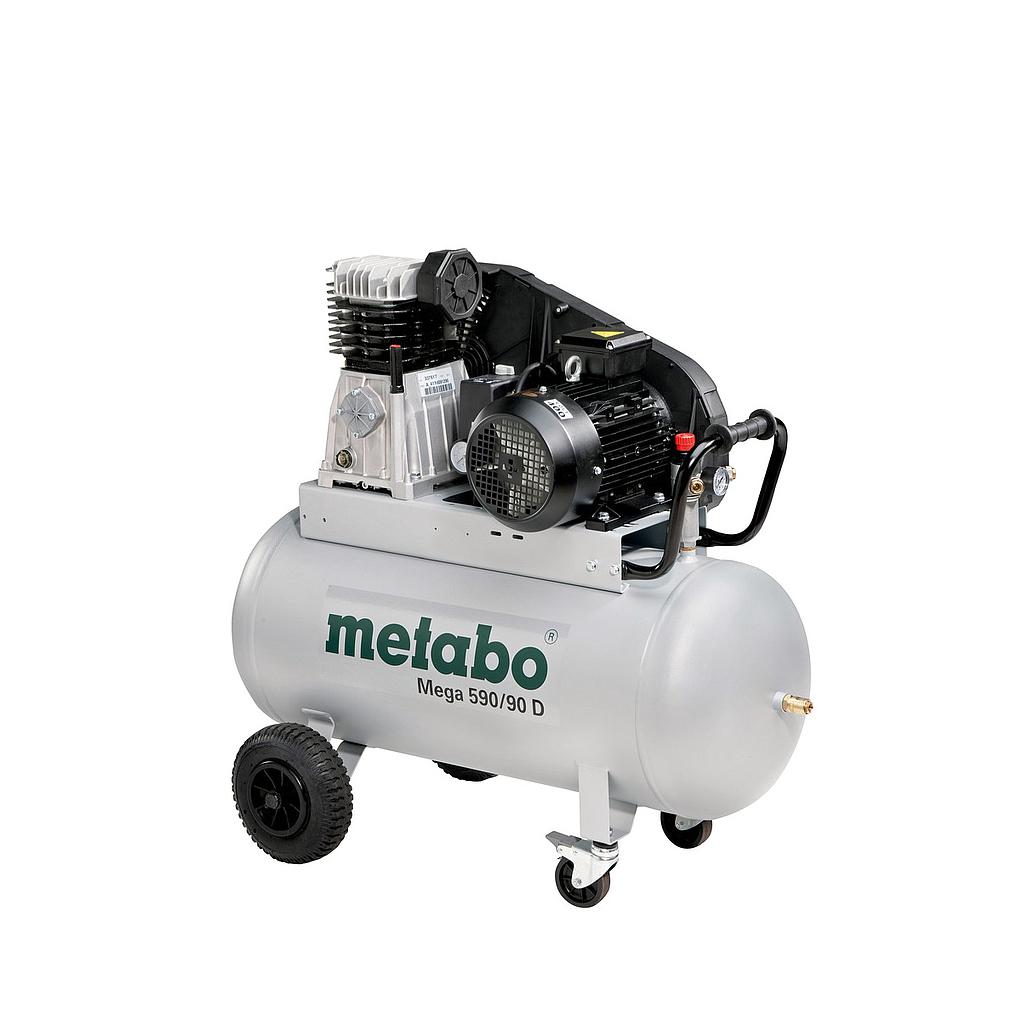

METABO MEGA 590/90 D Mega compressor (380-415 V / 50 Hz)

Suction rate: 480 l/min / 127 gal/h

Filling capacity: 380 l/min / 13.4 cfm

Effective delivery volume (at 80% max. pressure): 340 l/min / 12 cfm

Maximum pressure: 10 bar / 145 psi

Rated input power: 3 kW / 4 HP

Maximum speed: 1300 rpm

Tank capacity: 90 l / 23.8 gal

Sound pressure level (LpA): 76 dB(A)

Sound power level (LwA): 96 dB(A)

Dimensions: 1180 x 460 x 930 mm / 3.9 x 1.5 x 3.1 ft

Weight: 73 kg / 161 lbs

Cable length: 2 m / 7 ft

Noise emission

Sound pressure level: 76 dB(A)

Sound power level (LwA): 96 dB(A)

Delivery

2 x Quick-action couplings

Datasheet

Features

For three-phase current

10 year tank warranty against rust

More powerful and robust V-belt compressor for professional use

Oil-lubricated 2-cylinder piston condenser for high working pressure

Thermal motor protection

Good cold start feature by means of push button with starting valve

Regulated working pressure and improved air quality thanks to filtered pressure reducer

Two manometers to display working and tank pressure

Air-inflated large rear wheels plus small front wheels with parking brake
