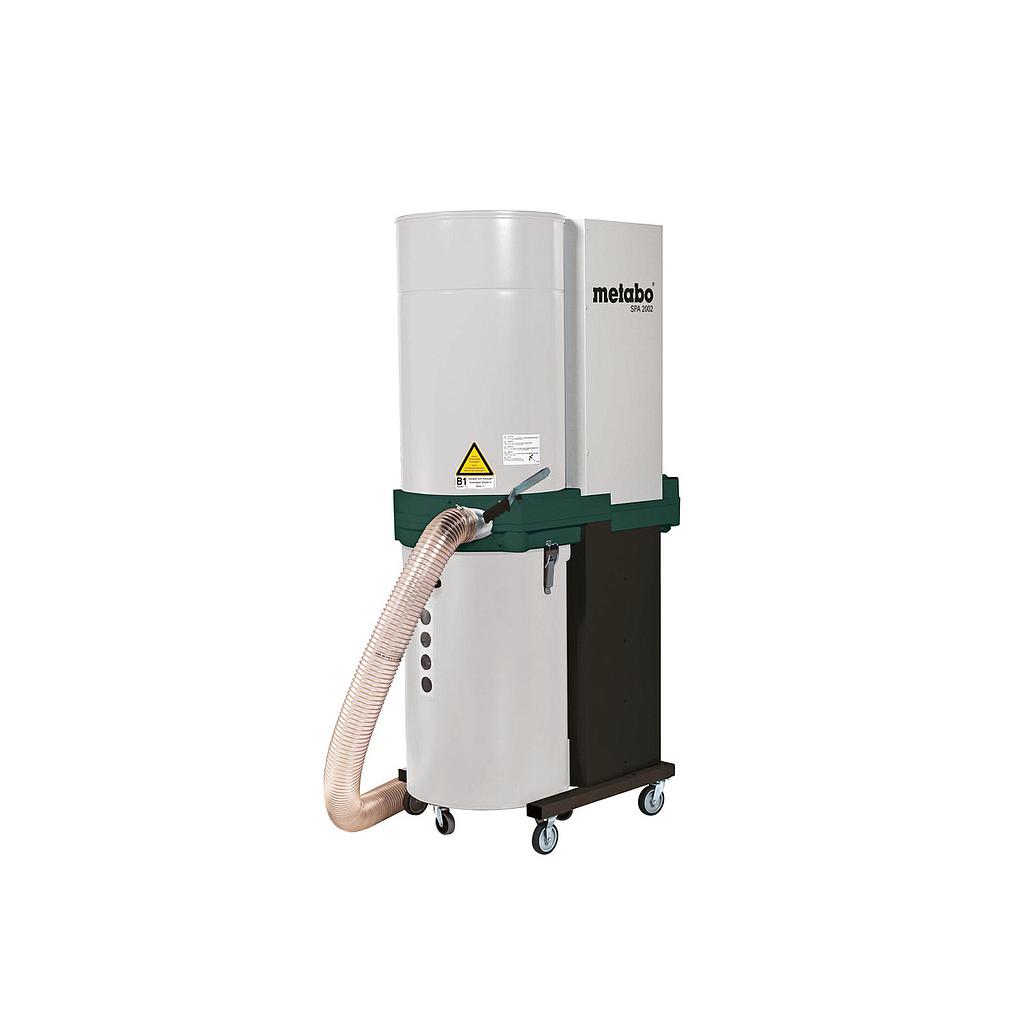

METABO SPA 2002 D Chip and dust extraction unit (380-415 V / 50 Hz)

Dimensions: 1178 x 650 x 1973 mm / 3.9 x 2.2 x 6.5 ft

Maximum vacuum: 2124 Pa / 0.3 psi

Maximum volume flow: 790 m³/h / 208696 gal/h

Filter surface: 4.1 m² / 6355 sq.inch

Hose connection Ø: 100 mm / 4 "

Chip bag capacity: 135 l / 36 gal

Mains voltage: 380 - 415 V

Rated input power: 1.5 kW

Weight: 116 kg / 256 lbs

Noise emission

Sound pressure level: 78 dB(A)

Sound power level (LwA): 94 dB(A)

Delivery

Suction hose 100 x 2500 mm

Accessories

SAWING

Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

Raw air extraction device, meets the purity and safety requirements of the regulation GS-HO-07

User protection by means of continuous compliance of only 0.1 mg/m³ residual dust content (dust class M)

Released for commercial use

For connection to stationary and semi-stationary woodworking machines

Optimum ratio of flow and vacuum for maximum performance

Cyclone technology goes easy on the filter for extended maintenance intervals

Manometer for monitoring the minimum air volume flow

Easy and effective filter cleaning, even during operation

Stable stand with supported chip collection bag

Wheeled collection container for easy transport of the chips

Release lever for quick changing of dust sack

Window for checking fill level of bin

Comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses and adapters

High torque three-phase motor
