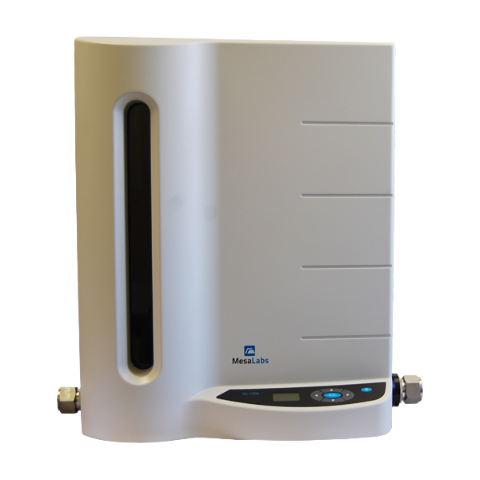

Mesalabs DryCal 1500 Flow Calibrator (15-1500 sL/min)

Flow Ranges: 15-1500 sL/min at 45 PSIA

Uncertainty: ±0.45% of reading

Weight: 90 lbs / 41 kg

Dimensions (H x W x D): 32W” x 34H” x 12D”

Data Cable: 1 meter, for use with data port

Data Port: RS-232 (serial), for PC interface

Display: Graphical LCD with backlight

Flow Measurement Cell: Integrated (all-in-one design)

Flow Measurement Style: Single, Continuous or Burst, with averaging function user-selectable from 1 to 100

Flow Measurement Type: Volumetric (primary by nature), Standardized

Gas Compatibility: Noncorrosive, noncondensing, noncombustible gases, less than 70% humidity

Humidity (Ambient): 0-70%, noncondensing

Inlet and Outlet Fittings: 1 1/2” Swagelok® compression tube fitting

Overpressure Release Fitting: 1/2” Swagelok® compression tube fitting

Storage Temperature: 0-70° C

Power: External power module

Input: 100-240 VAC, 1.6A (max), 50-60 Hz

Output: 12 VDC, 3.0A

Pressure (Operating Range): 14-45 PSIA

Pressure Transducer: 0-50 PSI (absolute), accuracy ±0.05% FS (typical), ±0.10% (max)

Purge Fittings: 1/4” Swagelok® compression tube fittings

RoHS Compliant: Yes

Temperature (Operating): 15-30° C

Pneumatic Valve Operation: Air supply: 80-100 PSI (not provided)

Fitting: 1/4th” Swagelok® compression

Warranty: 1 year
