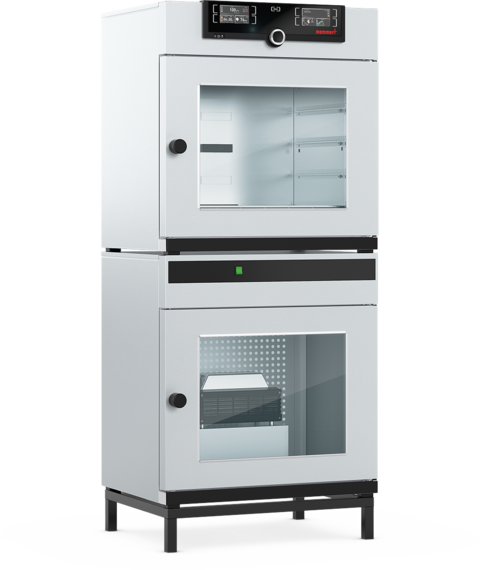

MEMMERT VO101 Vacuum Oven (101L)

Interior dimension: 545W x 465H x 400D mm

Exterior dimension: 710W x 767H x 550D mm

Thermoshelf of aluminum (standard): 1

Max. number of thermoshelves: 2

Setting accuracy temperature: up to 99.9 °C: 0.1 / from 100 °C: 0.5

Setting temperature range: +20 to +200 °C

Temperature sensor: temperature measured through 4-wire Pt100 sensor individually for each thermoshelf

Working temperature range min. 5°C above ambient up to +200°C

Vaccum range: 5 – 1100 mbar

Pressure control: digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Programmable, digitally controlled inlet for air.

Permitted final vacuum: 0.01 mbar

Maximum leckage rate: 0.01 bar/h

Pump control: speed control, optimised rinsing procedures for the pump membrances as well as signal output for pump ON/OFF

Connection: vacuum connection with small flange DN16, and gas inlet with small flange DN16

Adjustable parameters: temperature (Celsius or Fahrenheit), pressure (vacuum), programme time, time zones

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian, Italian

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays

Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT: the process time does not start unitil the set temperature is reached

Interface: Ethernet LAN, USB

Programme stored in case of power failure

Programming: AtmoCONTROL sofware on a USB stick for programming, managing and transfering programmes via Ethernet interface or USB port

Temperature control: mechanical temperature limiter TB, protection class according to DIN 12880 to switch off the heating approx. 100C above norminal temperature

AutoSAFETY: additionally integrated over-and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature

Alarm: visual and acoustic

Fuzzy-supported MLC (Multi-Level-Controlling) microprocessor controller adapting its performance to the volume (local temperature sensing) for each thermoshelf

Thermo shelves: 2 connections for thermoshelves in the rear (1st and 3rd level)

Door: full-sight glass door, inside spring-loaded, 15 mm thick glazed panel in safety glass, outside with anti-splitter screen

Housing: rear zinc-plated steel

Ambient temperature: 5 – 40°C

Humidity: max. 80% RH, non-condensing

Voltage: 230 V, 50/60 Hz
