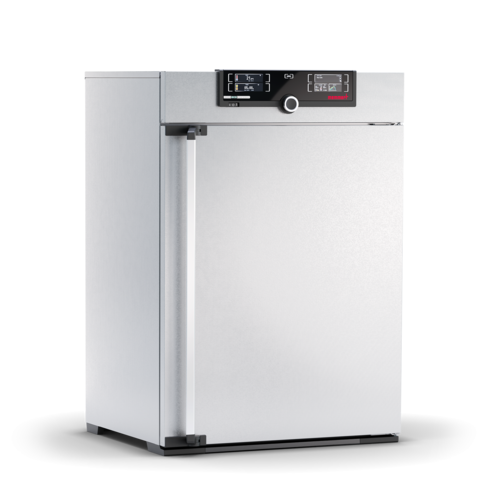

MEMMERT IPP260ecoplus Peltier-cooled Incubator (256L)

Temperature

- Setting temperature range: 0 to +70°C

- Working temperature range with light:+10 to +40°C

- Working temperature range without light: from 0 (at least 20 below ambient temperature) to +70°C

- Setting accuracy temperature: 0.1°C

- Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

- ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

- Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

- Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %

- Function SetpointWAIT: the process time does not start until the set temperature is reached

- Calibration: three freely selectable temperature values

- Adjustable parameters: temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

Communication

- Documentation: programme stored in case of power failure

- Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Standard equipment

- Works calibration certificate: for +10°C, +25°C and +40°C

- Door: fully insulated stainless steel door with 2-point locking (compression door lock)

- Internals: 2 stainless steel grid(s), electropolished

- Door: inner glass door

Stainless steel interior

- Dimensions: w(A) x h(B) x d(C): 640 x 800 x 500 mm (d less 32 mm for fan - Peltier)

- Volume: 256 l

- Max. number of internals: 9

- Max. loading of chamber: 200 kg

- Max. loading per internal: 20 kg

Textured stainless steel casing

- Dimensions: w(D) x h(E) x d(F): 824 x 1183 x 655 mm (d +56mm door handle & +111mm Peltier element)

- Housing: rear zinc-plated steel
