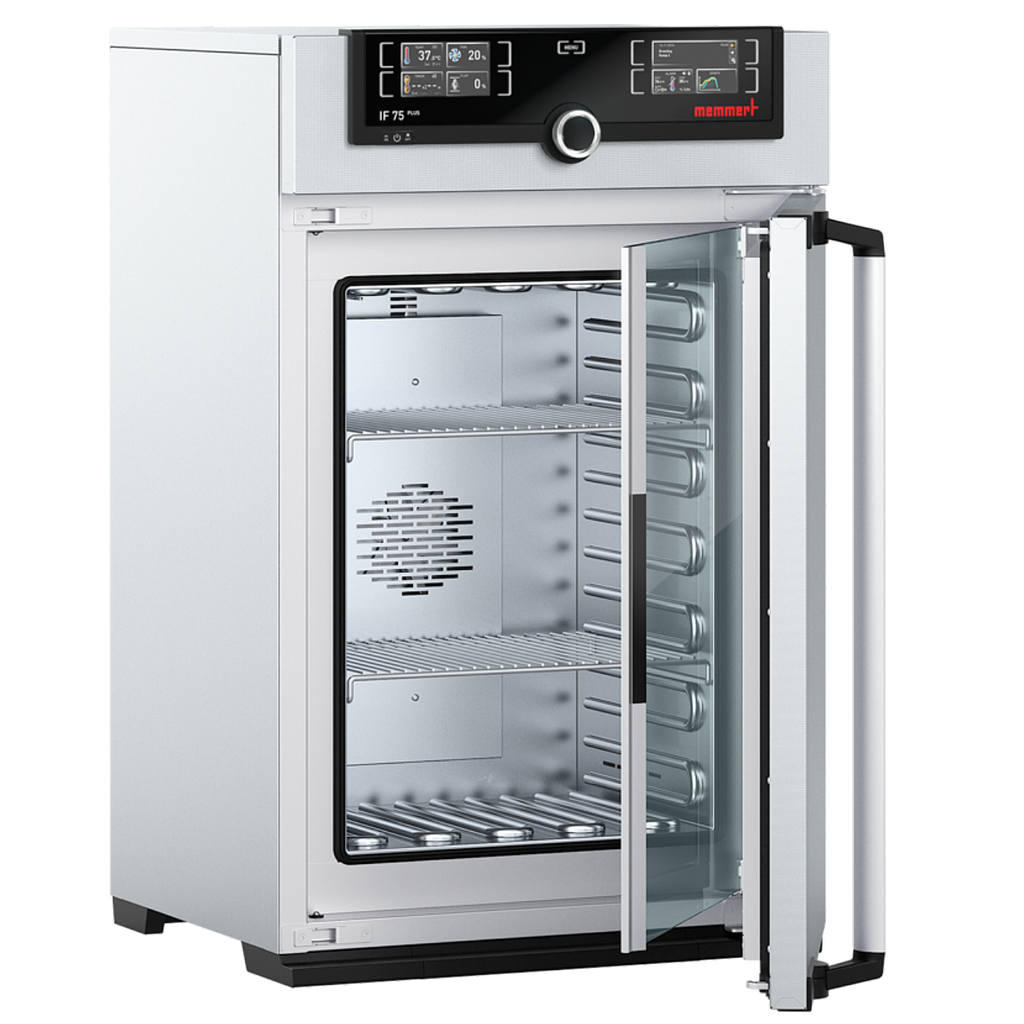

MEMMERT IF75plus Incubator (20-80°C, 74L)

Temperature

- Setting temperature range: 20 to +80°C

- Working temperature range: min. 10°C above ambient up to +80°C

- Setting accuracy temperature: 0.1°C

- Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

- ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

- Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

- Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %

- Function SetpointWAIT: the process time does not start until the set temperature is reached

- Calibration: three freely selectable temperature values

- Adjustable parameters: temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

- Sterilisation: fixed sterilisation programme (4 hours/160°C) for sterilization of working chamber, not for sterilising the load

- Ventilation:

Fan: forced air circulation by quite air turbine, adjustable in 10 % steps for each segment individually

Communication

- Documentation: programme stored in case of power failure

- Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Standard equipment

- Works calibration certificate: incl. works calibration certificate for +37°C

- Door: fully insulated stainless steel door with 2-point locking (compression door lock)

- Internals: 2 stainless steel grid(s), electropolished

- Door: inner glass door

Stainless steel interior

- Dimensions: w(A) x h(B) x d(C): 400 x 560 x 330 mm (d less 39 mm for fan)

- Volume: 74L

- Max. number of internals: 6

- Max. loading of chamber: 120 kg

- Max. loading per internal: 20 kg

Textured stainless steel casing

- Dimensions: w(D) x h(E) x d(F): 585 x 944 x 514 mm (d +56mm door handle)

- Housing: rear zinc-plated steel

Electric data

- Voltage: 230 V, 50/60 Hz

- Electric load: approx. 1250W

Ambient conditions

Ambient temperature: 5 °C to 40 °C

Humidity rh: max. 80 %, non-condensing
