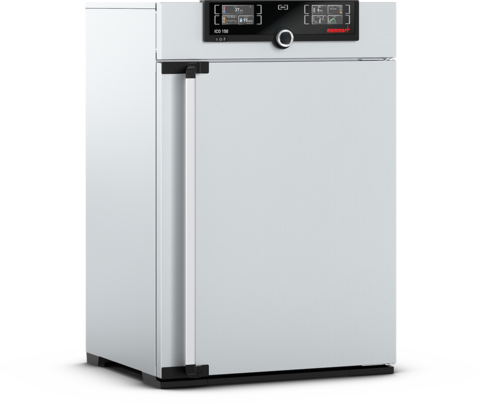

MEMMERT ICO150 CO2 Incubator (156L)

Volume: 156 liters

Interior dimension: width 560 x height 700 x depth 400 mm

Exterior dimension: width 719 x height 1070 x depth 591 mm

Stainless steel shelves (standard): 2

Max. number of perforated shelves: 10

Working-temperature range: +5°C above ambient temperature up to 50°C

Standard sterilisation programme: 60 minutes at 180 °C (without removing the sensors)

Setting accuracy: 0.1°C

2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Temperature fluctuations with time at 37°C+/- 0.3 K

Temperature variation in chamber at 37°C+/- 0.1 K

Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93% rh ± 2.5 %

Setting range active humidity control: 40 to 97%rh and rh-off (with option K7)

Setting accuracy humidity: 0.5% rh

Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation

Adjustment range CO2: 0 - 20%

Variation in time CO2: ± 0.2%

Setting accuracy CO2: 0.1%

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour display

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Function SetpointWAIT: the process time does not start until the set temperature is reached

Adjustable parameters: temperature (Celsius or Fahrenheit), CO2, programme time, time zones, summertime/wintertime

Interface: Ethernet LAN, USB

Programme stored in case of power failure

AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Additionally integrated over and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Autodiagnostic system: integral fault diagnostics for temperature, CO2

Alarm: visual and acoustic

Large-area multi-function heating system on four sides with additional door and back heating to avoid condensation

Fully insulated stainless steel door with 2-point locking

Inner glass door with opening (8 mm Ø) to take gas sample

Interior: material 1.4301 (ASTM 304), corrosion resistant

Voltage: 230V, 50/60Hz

Electrical load: aprrox. 1500 W

Ambient temperature: 10 – 35°C

Humidity: max. 70%, non-condensing
